LUCKY STAR TECHNOLOGY CO., LTD.
6AZX2V
| Device Type | Mainboard |
| Processor | Pentium II/Celeron |
| Processor Speed | 233/266/300/333/350/366/400/450/500/550MHz |
| Chip Set | Intel 440ZX |
| Video Chip Set | None |
| Maximum Onboard Memory | 256MB (EDO & SDRAM supported) |
| Maximum Video Memory | None |
| Cache | 0/128/256/512KB (located on the CPU) |
| BIOS | Award |
| Dimensions | 305mm x 180mm |
| I/O Options | 16-bit ISA slots (2), 32-bit PCI slots (5), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB ports (2), ATX power connector, AGP slot, wake-on-LAN connector, SB-link connector, Green PC connector |

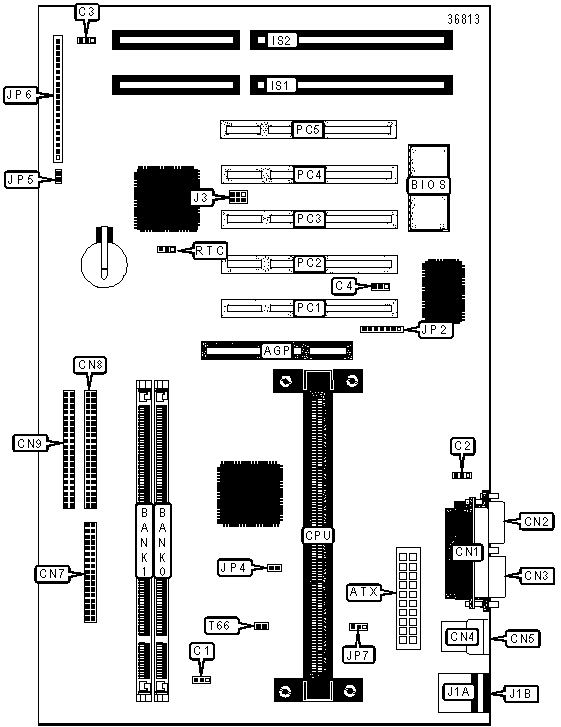

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP |
16-bit ISA slots | IS1 – IS2 |
| ATX power connector | ATX |
PS/2 mouse port | J1 |
| CPU fan power | C1 |
SB-link connector | J3 |
| CPU fan power | C2 |
IR connector | JP2 |
| CPU fan power | C3 |
Unidentified | JP4 |
| Wake-on-LAN connector | C4 |
Soft off power supply | JP5 |
| Parallel port | CN1 |
Power LED & keylock | JP6/pins 1 – 5 |
| Serial port 2 | CN2 |
Speaker | JP6/pins 7 – 10 |
| Serial port 1 | CN3 |
Reset switch | JP6/pins 12 & 13 |
| USB port 1 | CN4 |
IDE interface LED | JP6/pins 15 & 16 |
| USB port 2 | CN5 |
Turbo LED | JP6/pins 18 & 19 |
| Floppy drive interface | CN7 |
Green PC connector | JP6/pins 21 & 22 |
| IDE interface 2 | CN8 |
Unidentified | JP7 |
| IDE interface 1 | CN9 |
32-bit PCI slots | PC1 – PC5 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | RTC |
Pins 1 & 2 closed |
| CMOS memory clear | RTC |
Pins 2 & 3 closed |
|
| » | Normal clock operation at 66MHz | T66 | Closed |
| Over-clock clock operation at 100MHz | T66 | Open | |
| DIMM CONFIGURATION | ||
Size |
Bank 0 |
Bank 1 |
8MB |
(1) 1M x 64 |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
16MB |
(1) 2M x 64 |
None |
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
32MB |
(1) 4M x 64 |
None |
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
64MB |
(1) 8M x 64 |
None |
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
128MB |
(1) 16M x 64 |
None |
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
| Note: Board supports EDO & SDRAM memory. | ||
CACHE CONFIGURATION |
| Note: 256/512KB cache is located on the Pentium II CPU. 128KB cache is located on the Celeron 300A and greater CPU. |
