LUCKY STAR TECHNOLOGY CO,. LTD.
6P2ZX2
| Device Type | Mainboard |
| Processor | Pentium II/Pentium III |
| Processor Speed | 233/266/300/333/350/400/450/500MHz |
| Chip Set | Intel 440ZX |
| Maximum Onboard Memory | 256MB (EDO & SDRAM supported) |
| Cache | 256/512KB (located on the CPU) |
| BIOS | Award |
| Dimensions | 305mm x 180mm |
| I/O Options | 16-bit ISA slots (2), 32-bit PCI slots (5), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, serial ports (2), IR connector, USB ports (2), ATX power connector, AGP slot, SB-Link connector, Wake-onLAN connector |

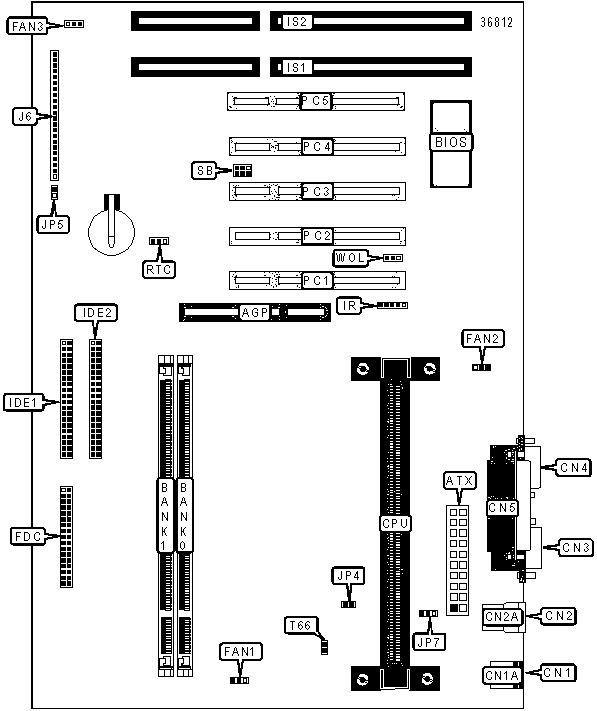

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP |
IR connector | IR |
| ATX power connector | ATX |
16-bit ISA slots | IS1 - IS2 |
| PS/2 keyboard port | CN1 | Thermistor connector | JP4 |
| PS/2 mouse port | CN1A | Soft off power supply | JP5 |
| USB port 1 | CN2 | Power LED | JP6/Pins 1-3 |
| USB port 2 | CN2A | Keylock | JP6/Pins 4 & 5 |
| Serial port 1 | CN3 | Speaker | JP6/Pins 7-10 |
| Serial port 2 | CN4 | Reset switch | JP6/Pins 12 & 13 |
| Parallel port | CN5 | IDE interface LED | JP6/Pins 15 & 16 |
| CPU fan power 1 | FAN1 | Turbo LED | JP6/Pins 18 & 19 |
| CPU fan power 2 | FAN2 | Green PC connector | JP6/Pins 21 & 22 |
| CPU fan power 3 | FAN3 | Unidentified | JP7 |
| Floppy drive interface | FDC | 32-bit PCI slots | PC1 - PC5 |
| IDE interface 1 | IDE1 | SB-Link connector | SB |
| IDE interface 2 | IDE2 | Wake-on-LAN connector | WOL |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | RTC |
Pins 1 & 2 closed |
| CMOS memory clear | RTC |
Pins 2 & 3 closed |
|
| » | Normal clock operation at 66MHz | T66 | Closed |
| Over-clock clock operation at 100MHz | T66 | Open | |
| DIMM CONFIGURATION | ||
Size |
Bank 0 |
Bank 1 |
8MB |
(1) 1M x 64 |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
16MB |
(1) 2M x 64 |
None |
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
32MB |
(1) 4M x 64 |
None |
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
64MB |
(1) 8M x 64 |
None |
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
128MB |
(1) 16M x 64 |
None |
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
| Note: Board supports EDO & SDRAM memory. | ||
CACHE CONFIGURATION |
| Note: 512KB is located on the Pentium III CPUs. 256KB/512KB cache is located on the Pentium II CPUs. |
