LUCKY STAR TECHNOLOGY CO,. LTD.
6VA693
| Device Type | Mainboard |
| Processor | Celeron/Pentium II/Pentium III |
| Processor Speed | 233/266/300/333/366/400/433/450/466/500MHz |
| Chip Set | VIA |
| Maximum Onboard Memory | 384MB (EDO & SDRAM supported) |
| Cache | 0/128/256/512KB |
| BIOS | Award |
| Dimensions | 305mm x 180mm |
| I/O Options | 16-bit ISA slots (2), 32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VGA interface, Audio/Modem riser slot, IR connector, USB ports (2), ATX power connector, AGP slot, audio in - CD-ROMs (2), Keyboard port |

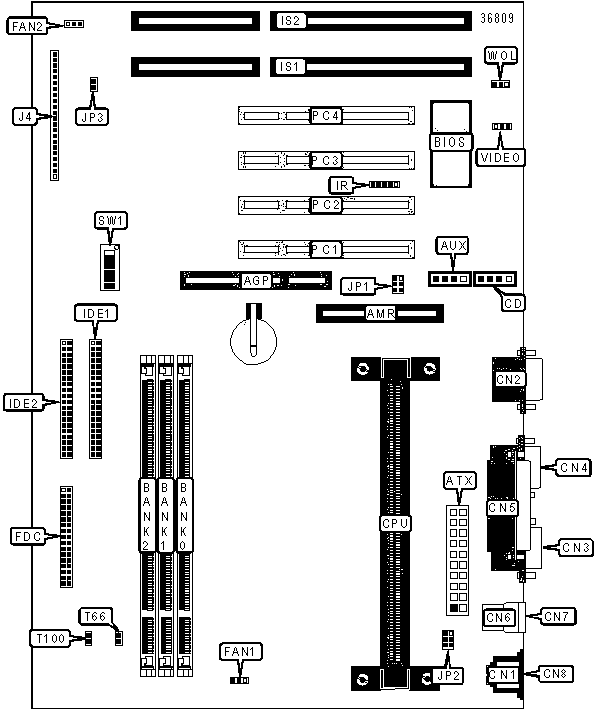

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP |
Floppy drive interface | FDC |
| Audio/Modem Riser slot | AMR | IDE interface 1 | IDE1 |
| ATX power connector | ATX |
IDE interface 2 | IDE2 |
| Auxiliary Audio in - CD-ROM | AUX | IR connector | IR |
| Audio in - CD-ROM | CD | 16-bit ISA slots | IS1 -IS2 |
| PS/2 mouse port | CN1 | Power LED | J4/Pins 1-3 |
| Unidentified | CN2 | Turbo LED | J4/Pins 4 & 5 |
| Serial port 1 | CN3 | Speaker | J4/Pins 7-10 |
| Serial port 2 | CN4 | Reset switch | J4/Pins 12 & 13 |
| Parallel port | CN5 | IDE interface LED | J4/Pins 15 & 16 |
| USB port 2 | CN6 | 5v power | J4/Pins 18 & 19 |
| USB port 1 | CN7 | Green PC connector | J4/Pins 21 & 22 |
| Keyboard port | CN8 | 32-bit PCI slots | PC1 - PC4 |
| CPU fan power 1 | FAN1 | VGA interface | VIDEO |
| CPU fan power 2 | FAN2 | Wake-on-LAN connector | WOL |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | JP3 |
Pins 1 & 2 closed |
| CMOS memory clear | JP3 |
Pins 2 & 3 closed |
|
| » | Normal clock operation at 66MHz | T66 | Closed |
| Over-clock clock operation at 100MHz | T66 | Open | |
| » | Normal clock operation at 100MHz | T100 | Closed |
| Turbo clock operation at 100MHz | T100 | Open | |
| DIMM CONFIGURATION | |||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
| Note: Board supports EDO & SDRAM memory. | |||
CACHE CONFIGURATION |
| Note: 512KB is located on the Pentium III CPUs. 256KB/512KB cache is located on the Pentium II CPUs. 128KB cache is located on the Celeron 300A and greater CPUs. |
CPU SPEED SELECTION (PENTIUM) |
|||
CPU speed |
Clock speed |
SW1/1 |
SW1/2 |
100MHz |
66MHz |
Off |
Off |
103MHz |
50MHz |
On |
On |
112MHz |
75MHz |
On |
Off |
133MHz |
83MHz |
Off |
On |
CPU MULTIPLIER SELECTION |
||||
Multiplier |
SW1/3 | SW1/4 | SW1/5 | SW1/6 |
3x |
On | Off | On | On |
3.5x |
Off | Off | On | On |
4x |
On | On | Off | On |
4.5 |
Off | On | Off | On |
| 5X | On | Off | Off | On |
| 5.5X | Off | Off | Off | On |
