LUCKY STAR TECHNOLOGY CO., LTD.
5MVP4
| Device Type | Mainboard |
| Processor | CX 6X86L/CX 686MX/CX MII/AM K5/AM K6/AM K6-2/Pentium/Pentium MMX |
| Processor Speed | 100/133/166/200/233/250/266/300/333/366/380/400/433/450MHz |
| Chip Set | VIA |
| Audio Chip Set | ESS |
| Maximum Onboard Memory | 768MB (EDO & SDRAM supported) Unified Memory Architecture (UMA) |
| Cache | 512/1024KB |
| BIOS | Award |
| Dimensions | 220mm x 240mm |
| I/O Options (backplane) | 32-bit PCI slots (3), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse interface, serial interfaces (2), VGA connector, riser slot, IR connector, USB interface, ATX power connector, audio in - CD-ROM, Audio/Modem Riser slot, Green PC connector, Game/MIDI interface |

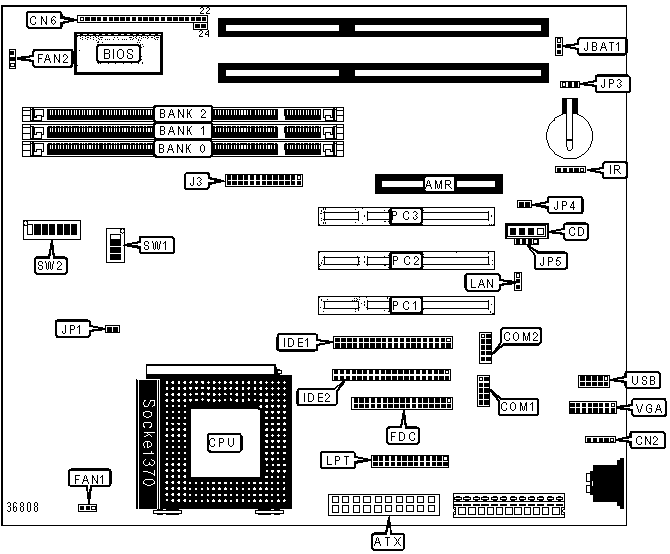

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| Audio/Modem Riser slot | AMR | Serial interface 2 | COM2 |
| ATX power connector | ATX |
CPU fan power 1 | FAN1 |
| Audio in - CD-ROM | CD | CPU fan power 2 | FAN2 |
| PS/2 mouse interface | CN1 | Floppy drive interface | FDC |
| Green PC connector | CN6/Pins 1 & 2 | IDE interface 1 | IDE1 |
| Turbo LED | CN6/Pins 4 & 5 | IDE interface 2 | IDE2 |
| IDE interface LED | CN6/Pins 7 & 8 | IR connector | IR |
| Reset switch | CN6/Pins 10 & 11 | Game/MIDI interface | J3 |
| Speaker | CN6/Pins 13-16 | Wake-on-LAN connector | LAN |
| Keylock | CN6/Pins 18-19 | Parallel port | LPT |
| Power LED | CN6/Pins 20-22 | 32-bit PCI slots | PC1 - PC3 |
| Soft off power supply | CN6/Pins 23 & 24 | USB interface | USB |
| Serial interface 1 | COM1 | VGA interface | VGA |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | JBAT1 |
Pins 1 & 2 closed |
| CMOS memory clear | JBAT1 |
Pins 2 & 3 closed |
|
| CPU VIO at 3.45v | JP1 | Closed | |
| CPU VIO at 3.3v | JP1 | Open | |
» |
PS/2 mouse enabled | JP3 | Pins 2 & 3 closed |
| PS/2 mouse disabled | JP3 | Pins 1 & 2 closed | |
| DIMM CONFIGURATION | |||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 32M x 64 |
None |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
272MB |
(1) 32M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
288MB |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
320MB |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
384MB |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
512MB |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports EDO & SDRAM memory. | |||
AUDIO FUNCTION SELECTION |
||
| Function | JP4 | JP5 |
Audio only |
Pins 1 & 2 closed | Pins 1 & 2 closed |
Audio and AMR slot |
Pins 1 & 2 closed | Pins 1 & 2, 3 & 4 closed |
AMR slot only |
Open | Pins 3 & 4 closed |
CPU SPEED SELECTION (CYRIX 6X86) |
|||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 | SW1/3 | SW1/4 | SW2/5 | SW2/6 |
SW2/7 |
166MHz |
66MHz |
2x |
On | Off | Off | Off | On | Off | Off |
CPU SPEED SELECTION (CYRIX 6X86L) |
|||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 | SW1/3 | SW1/4 | SW2/5 | SW2/6 |
SW2/7 |
166MHz |
66MHz |
2x |
On | Off | Off | Off | On | Off | Off |
200MHz |
75MHz |
2x | Off | Off | Off | On | On | Off | Off |
CPU SPEED SELECTION (CYRIX 686MX) |
|||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 | SW1/3 | SW1/4 | SW2/5 | SW2/6 |
SW2/7 |
166MHz |
66MHz |
2x |
On | Off | Off | Off | On | Off | Off |
200MHz |
75MHz |
2x | Off | Off | Off | On | On | Off | Off |
233MHz |
75MHz |
2.5x | Off | Off | Off | On | On | On | Off |
266MHz |
83MHz |
2.5x | On | Off | On | Off | On | On | Off |
CPU SPEED SELECTION (CYRIX MII) |
|||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 | SW1/3 | SW1/4 | SW2/5 | SW2/6 |
SW2/7 |
300MHz |
66MHz |
3.5x |
On | Off | Off | Off | Off | Off | Off |
333MHz |
83MHz |
3x | On | Off | On | Off | Off | On | Off |
366MHz |
100MHz |
2.5x | On | On | On | Off | On | On | Off |
CPU SPEED SELECTION (AMD K5) |
|||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 | SW1/3 | SW1/4 | SW2/5 | SW2/6 |
SW2/7 |
100MHz |
66MHz |
1.5x |
On | Off | Off | Off | Off | Off | Off |
133MHz |
66MHz |
2.5x | On | Off | Off | Off | Off | Off | Off |
166MHz |
66MHz |
2.5x | On | Off | Off | Off | On | On | Off |
CPU SPEED SELECTION (AMD K6) |
|||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 | SW1/3 | SW1/4 | SW2/5 | SW2/6 |
SW2/7 |
166MHz |
66MHz |
2.5x |
On | Off | Off | Off | On | On | Off |
200MHz |
66MHz |
3x | On | Off | Off | Off | Off | On | Off |
233MHz |
66MHz |
3.5x | On | Off | Off | Off | Off | Off | Off |
266MHz |
66MHz |
4x | On | Off | Off | Off | On | Off | On |
300MHz |
66MHz |
4.5x | On | Off | Off | Off | On | On | On |
CPU SPEED SELECTION (AMD K6-2) |
|||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 | SW1/3 | SW1/4 | SW2/5 | SW2/6 |
SW2/7 |
250MHz |
100MHz |
2.5x |
On | On | On | Off | On | On | Off |
266MHz |
66MHz |
4x | On | Off | Off | Off | On | Off | On |
300MHz |
66MHz |
4.5x | On | Off | Off | Off | On | On | On |
300MHz |
100MHz |
3x | On | On | On | Off | Off | On | Off |
333MHz |
66MHz |
5x | On | Off | Off | Off | Off | On | On |
333MHz |
95MHz |
3.5x | Off | On | On | Off | Off | Off | Off |
350MHz |
100MHz |
3.5x | On | On | On | Off | Off | Off | Off |
366MHz |
66MHz |
5.5x | On | Off | Off | Off | Off | Off | On |
380MHz |
95MHz |
4x | Off | On | On | Off | On | Off | On |
400MHz |
100MHz |
4x | On | On | On | Off | On | Off | On |
CPU SPEED SELECTION (AMD K6-III) |
|||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 | SW1/3 | SW1/4 | SW2/5 | SW2/6 |
SW2/7 |
400MHz |
100MHz |
4x |
On | On | On | Off | On | Off | On |
450MHz |
100MHz |
4.5x | On | On | On | Off | On | On | On |
CPU SPEED SELECTION (PENTIUM) |
|||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 | SW1/3 | SW1/4 | SW2/5 | SW2/6 |
SW2/7 |
100MHz |
66MHz |
1.5x |
On | Off | Off | Off | Off | Off | Off |
133MHz |
66MHz |
2x | On | Off | Off | Off | On | Off | Off |
166MHz |
66MHz |
2.5x | On | Off | Off | Off | On | On | Off |
200MHz |
66MHz |
3x | On | Off | Off | Off | Off | On | Off |
CPU SPEED SELECTION (PENTIUM MMX) |
|||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 | SW1/3 | SW1/4 | SW2/5 | SW2/6 |
SW2/7 |
166MHz |
66MHz |
2.5x |
On | Off | Off | Off | On | On | Off |
200MHz |
66MHz |
3x | On | Off | Off | Off | Off | On | Off |
233MHz |
66MHz |
3.5x | On | Off | Off | Off | Off | Off | Off |
CPU VOLTAGE SELECTION |
||||
Voltage |
SW2/1 | SW2/2 | SW2/3 | SW2/4 |
| 2.0v | Off | Off | Off | Off |
| 2.1v | On | Off | Off | Off |
| 2.2v | Off | On | Off | Off |
| 2.3v | On | On | Off | Off |
| 2.4v | Off | Off | On | Off |
| 2.6v | Off | On | On | Off |
| 2.7v | On | On | On | Off |
| 2.8v | Off | Off | Off | On |
| 2.9v | On | Off | Off | On |
| 3.0v | Off | On | Off | On |
| 3.1v | On | On | Off | On |
| 3.2v | Off | Off | On | On |
| 3.3v | On | Off | On | On |
| 3.4v | Off | On | On | On |
| 3.5v | On | On | On | On |
