LUCKY STAR TECHNOLOGY CO, LTD.
6M810
| Device Type | Mainboard |
| Processor | Celeron |
| Processor Speed | 300A/333/366/400/433/466MHz |
| Chip Set | Intel |
| Sound Chip Set | ESS |
| Maximum Onboard Memory | 512MB (SDRAM supported) |
| Cache | 0/128KB (located on the Celeron CPU) |
| BIOS | Award |
| Dimensions | 244mm x 220mm |
| I/O Options | 32-bit PCI slots (3), floppy drive interface, game/MIDI port, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VGA port, audio/modem riser slot, IR connector, USB connectors (2), ATX power connector, audio in - CD-ROM, SB-Link connector |

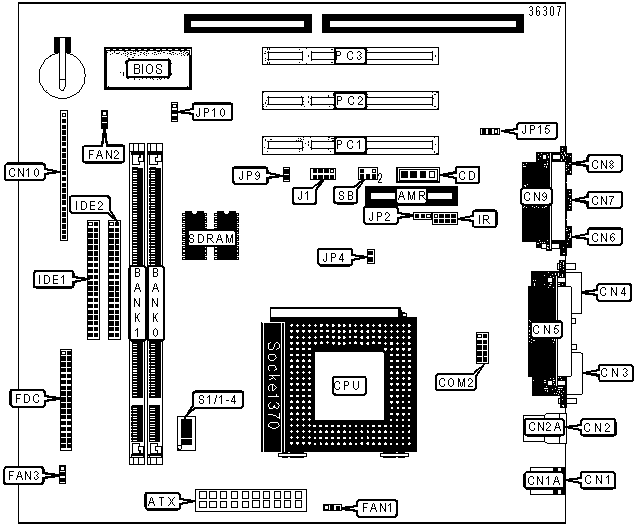

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| Audio/Modem Riser slot | AMR | Chassis fan power 1 | FAN2 |
| ATX power connector | ATX |
Chassis fan power 2 | FAN3 |
| Audio in - CD-ROM | CD | Floppy drive interface | FDC |
| PS/2 keyboard port | CN1 | IDE interface 1 | IDE1 |
| PS/2 mouse port | CN1A | IDE interface 2 | IDE2 |
| USB port 1 | CN2 | IR connector | IR |
| USB port 2 | CN2A | TV output | J1 |
| Serial port 1 | CN3 | Soft off power supply | JP10/Pins 1 & 2 |
| VGA port | CN4 | Turbo LED | JP10/Pins 4 & 5 |
| Parallel port | CN5 | IDE interface LED | JP10/Pins 7 & 8 |
| Line out | CN6 | Reset switch | JP10/Pins 10 & 11 |
| Line in | CN7 | Speaker | JP10/Pins 13 - 16 |
| Microphone in | CN8 | Power LED & keylock | JP10/Pins 18 - 22 |
| Game/MIDI port | CN9 | 32-bit PCI slots | PC1 - PC3 |
| Serial interface | COM2 | SB-Link connector | SB |
| CPU fan power | FAN1 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| NTSC | JP4 | Open | |
| PAL | JP4 | Closed | |
» |
CMOS memory normal operation | JP10 |
Pins 1 & 2 closed |
| CMOS memory clear | JP10 |
Pins 2 & 3 closed |
|
| » | On-board audio disabled | JP15 |
Pins 1 & 2 closed |
| On-board audio enabled | JP15 |
Pins 2 & 3 closed |
|
» |
Factory configured - do not alter | SW1/1 |
Pins 2 & 3 closed |
DIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
8MB |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
32MB |
(1) 4M x 64 |
None |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
64MB |
(1) 8M x 64 |
None |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
128MB |
(1) 16M x 64 |
None |
164MB |
(1) 16M x 64 |
(1) 1M x 64 |
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
256MB |
(1) 32M x 64 |
None |
264MB |
(1) 32M x 64 |
(1) 1M x 64 |
272MB |
(1) 32M x 64 |
(1) 2M x 64 |
288MB |
(1) 32M x 64 |
(1) 4M x 64 |
320MB |
(1) 32M x 64 |
(1) 8M x 64 |
384MB |
(1) 32M x 64 |
(1) 16M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board accepts SDRAM memory. | ||
CACHE CONFIGURATION |
| Note: 128KB cache is located on the Celeron 300A and greater CPUs. |
CPU SPEED SELECTION |
||||||
CPU Speed |
Bus Speed | JP9 | S1/1 | S1/2 | S1/3 | S1/4 |
300A MHz |
66 MHz | Closed | On | On | Off | Off |
333 MHz |
66 MHz | Closed | On | On | Off | Off |
366 MHz |
66 MHz | Closed | On | On | Off | Off |
400 MHz |
66 MHz | Closed | On | On | Off | Off |
433 MHz |
66 MHz | Closed | On | On | Off | Off |
466 MHz |
66 MHz | Closed | On | On | Off | Off |
