PC CHIPS MANUFACTURING, LTD.
M767
| Device Type | Mainboard |
| Processor | Pentium II/Celeron |
| Processor Speed | 233/266/300/333/366/400/433/450/466/500MHz |
| Chip Set | Intel 440BX |
| Video Chip Set | Unidentified |
| Audio Chip Set | Sound Pro |
| Maximum Onboard Memory | 768MB (EDO & SDRAM supported) |
| Maximum Video Memory | 8MB |
| Maximum Audio Memory | Unidentified |
| Cache | 0/128/256/512KB (located on the CPU) |
| BIOS | AMI |
| Dimensions | 260mm x 220mm |
| I/O Options | 32-bit PCI slots (4), floppy drive interface, game/MIDI interface, green PC interface, IDE interfaces (2), parallel port, PS/2 mouse interface, serial interfaces (2), VGA interface, IR connector, USB interfaces (2), ATX power connector, audio in - CD-ROMs (2), ATX form card connector |

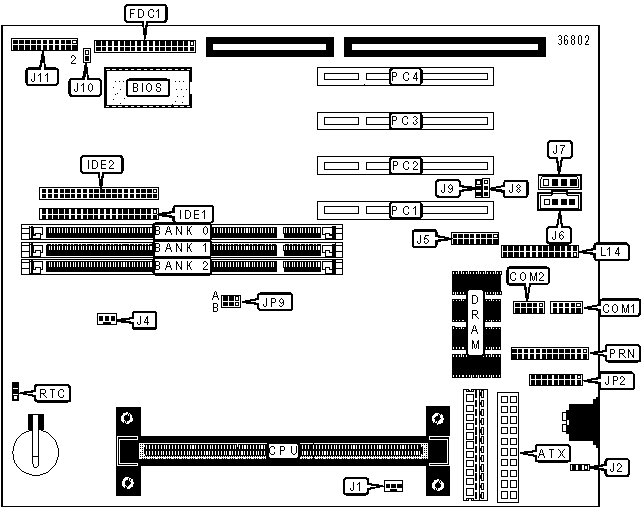

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| ATX power connector | ATX |
IDE interface 1 | IDE1 |
| Serial interface 1 | COM1 | IDE interface 2 | IDE2 |
| Serial interface 2 | COM2 | Speaker | J11/Pins 1, 3, 5 & 7 |
| Floppy drive interface | FDC1 | Power LED & keylock | J11/Pins 2, 4, 6, 8 & 10 |
| CPU fan power | J1 | Green PC connector | J11/Pins 13 & 14 |
| Chassis fan power | J4 | IDE interface LED | J11/Pins 15 & 16 |
| VGA interface | J5 | Reset switch | J11/Pins 17 & 18 |
| Audio in - CD-ROM (Sony) | J6 | Green PC switch | J11/Pins 21 & 22 |
| Audio in - CD-ROM (Panasonic) | J7 | ATX Form card connector | JP2 |
| Digital audio in - CD-ROM | J8 | Game/MIDI port | L14 |
| Digital audio out | J9 | Parallel port | PRN |
| Green PC LED | J10 | 32-bit PCI slots | PC1 - PC4 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
Keyboard power on disabled | J2 | Pins 2 & 3 closed |
| Keyboard power on enabled | J2 | Pins 1 & 2 closed | |
» |
CMOS memory normal operation | RTC |
Pins 1 & 2 closed |
| CMOS memory clear | RTC |
Pins 2 & 3 closed |
|
| DIMM CONFIGURATION | |||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 32M x 64 |
None |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
272MB |
(1) 32M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
288MB |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
320MB |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
384MB |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
512MB |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports EDO & SDRAM memory. | |||
CACHE CONFIGURATION |
| Note: 256KB/512KB cache is located on the Pentium II CPUs. 128KB cache is located on the Celeron 300A and greater CPUs. |
CPU VOLTAGE SELECTION |
|||
Voltage |
JP9A | JP9B | |
| » | 3.3v | Pins 1 & 2 closed | Pins 1 & 2 closed |
| 5.0v | Pins 2 & 3 closed | Pins 2 & 3 closed | |
