PC WARE INTERNATIONAL, INC
MB-592
| Device Type | Mainboard |
| Processor | CX 6X86/CX 6X86L/CX 686MX/CX M2/IBM 6X86/IBM 6X86L/IBM 6X86MX/AM K5/AM K6/IDT C6/Pentium/Pentium MMX |
| Processor Speed | 75/90/100/120/133/150/166/180/200/233/266/275/300MHz |
| Chip Set | Unidentified |
| Video Chip Set | Unidentified |
| Audio Chip Set | Sound Pro |
| Maximum Onboard Memory | 144MB (EDO & SDRAM supported) |
| Maximum Video Memory | 2MB |
| Maximum Audio Memory | Unidentified |
| Cache | 512KB |
| BIOS | AMI |
| Dimensions | Unidentified |
| I/O Options | 32-bit PCI slots (2), floppy drive interface, game interface, IDE interfaces (2), parallel port, serial interfaces (2), IR connector, USB interface, audio in - CD-ROMs (2) |

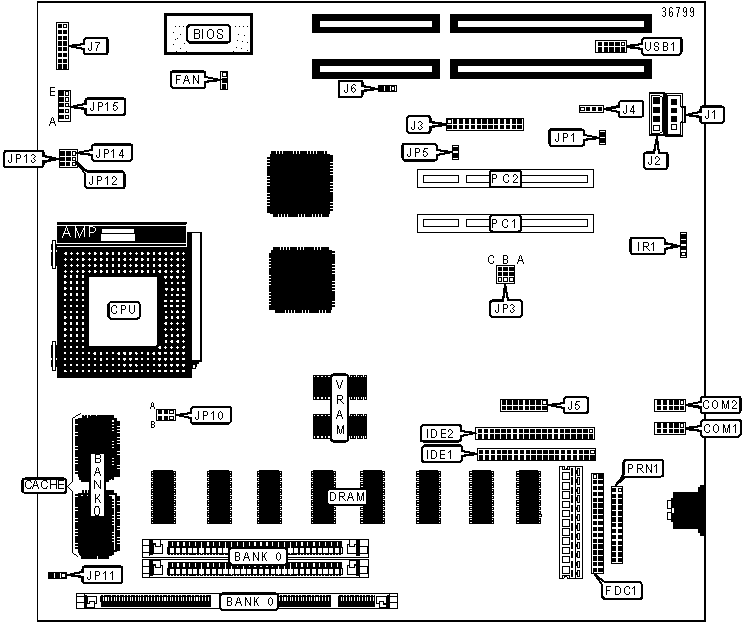

CONNECTIONS |
|||
Purpose |
Location |
Purpose |
Location |
| Serial interface 1 | COM1 | Digital audio in - CD-ROM | J4/Pins 1 & 2 |
| Serial interface 2 | COM2 | Digital audio out | J4/Pins 3 & 4 |
| CPU fan power | Fan | Power LED & Keylock | J7/Pins 1, 3, 5, 7 & 9 |
| Floppy drive interface | FDC1 | Speaker | J7/Pins 2, 4, 6 & 8 |
| Audio in - CD-ROM (Sony) | J1 | IDE interface LED | J7/Pins 13 & 14 |
| Audio in - CD-ROM (Panasonic) | J2 | Reset switch | J7/Pins 15 & 16 |
| Game & sound interface | J3 | Parallel port | PRN1 |
| IR connector | IR1 | 32-bit PCI slots | PC1 - PC2 |
| IDE interface 1 | IDE1 | USB interface | USB1 |
| IDE interface 2 | IDE2 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | J6 |
Pins 1 & 2 closed |
| CMOS memory clear | J6 |
Pins 2 & 3 closed |
|
| Sound Pro selector enabled | JP1 | Open | |
| Sound Pro selector disabled | JP1 | Closed | |
| Special Microphone type | JP5 | Closed | |
| Normal Microphone type | JP5 | Open | |
| DIMM 5V selector | JP11 | Pins 1 & 2 closed |
|
| DIMM 3V selector | JP11 | Pins 2 & 3 closed |
|
SIMM CONFIGURATION |
|
Size |
Bank 0 |
16MB |
(2) 1M x 36 |
32MB |
(2) 2M x 36 |
64MB |
(2) 4M x 36 |
128MB |
(2) 8M x 36 |
| Note: Board accepts EDO memory. | |
| DIMM CONFIGURATION | |
Size |
Bank 0 |
8MB |
(1) 1M x 64 |
16MB |
(1) 2M x 64 |
32MB |
(1) 4M x 64 |
64MB |
(1) 8M x 64 |
128MB |
(1) 16M x 64 |
| Note: Board supports EDO memory. | |
CPU TYPE SELECTION |
||
Type |
JP10A | JP10B |
| Single voltage | Pins 1 & 2 closed | Pins 1 & 2 closed |
| Dual voltage | Pins 2 & 3 closed | Pins 2 & 3 closed |
CPU MULTIPLIER SELECTION |
|||
Multiplier |
JP12 | JP13 | JP14 |
1.5x |
Pins 1 & 2 closed | Pins 1 & 2 closed | Pins 1 & 2 closed |
2x |
Pins 1 & 2 closed | Pins 1 & 2 closed | Pins 2 & 3 closed |
2.5x |
Pins 1 & 2 closed | Pins 2 & 3 closed | Pins 2 & 3 closed |
3x |
Pins 1 & 2 closed | Pins 2 & 3 closed | Pins 1 & 2 closed |
| 3.5x | Pins 1 & 2 closed | Pins 1 & 2 closed | Pins 1 & 2 closed |
| 4x | Pins 2 & 3 closed | Pins 1 & 2 closed | Pins 2 & 3 closed |
| 4.5x | Pins 2 & 3 closed | Pins 2 & 3 closed | Pins 2 & 3 closed |
| 5x | Pins 2 & 3 closed | Pins 2 & 3 closed | Pins 1 & 2 closed |
| 5.5x | Pins 2 & 3 closed | Pins 1 & 2 closed | Pins 1 & 2 closed |
CPU FREQUENCY SELECTION |
|||
Frequency |
JP3A | JP3B | JP3C |
| 50MHz | Pins 2 & 3 closed | Pins 2 & 3 closed | Pins 2 & 3 closed |
| 55MHz | Pins 2 & 3 closed | Pins 2 & 3 closed | Pins 1 & 2 closed |
| 60MHz | Pins 1 & 2 closed | Pins 2 & 3 closed | Pins 2 & 3 closed |
| 66MHz | Pins 2 & 3 closed | Pins 1 & 2 closed | Pins 2 & 3 closed |
| 75MHz | Pins 1 & 2 closed | Pins 2 & 3 closed | Pins 1 & 2 closed |
CPU CORE VOLTAGE SELECTION |
|||||
Voltage |
JP15A | JP15B | JP15C | JP15D | JP15E |
| 2.2V | Open | Open | Open | Open | Open |
| 2.8V | Open | Open | Open | Open | Closed |
| 2.9V | Open | Open | Open | Closed | Open |
| 3.2V | Open | Open | Closed | Open | Open |
| 3.3V | Open | Closed | Open | Open | Open |
| 3.5V | Closed | Open | Open | Open | Open |
MISCELLANEOUS TECHNICAL NOTE |
Board has 16MB EDO RAM installed. SIMM or DIMM can be filled up to 128MB to create a total of 144MB EDO RAM. |
