PC WARE INTERNATIONAL, INC.
MB-596 (VER. 1.3)
| Device Type | Mainboard |
| Processor | CX 6X86L//CX 686MX/CX M2/IBM 6X86L/IBM 6X86MX/AM K6/AM K6-2/IDT C6/Pentium/Pentium MMX |
| Processor Speed | 75/80/90/100/120/133/150/166/180/200/233/266/275/300/325/333/350MHz |
| Chip Set | Unidentified |
| Video Chip Set | Unidentified |
| Audio Chip Set | Sound Pro |
| Maximum Onboard Memory | 512MB (EDO & SDRAM supported) |
| Maximum Video Memory | 4MB |
| Maximum Audio Memory | Unidentified |
| Cache | 512KB |
| BIOS | AMI |
| Dimensions | 244mm x 190mm |
| I/O Options | 32-bit PCI slots (3), floppy drive interface, game port, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VGA connector, IR connector, USB ports (2), ATX power connector, line in, line out, microphone in, audio in - CD-ROMs (2) |

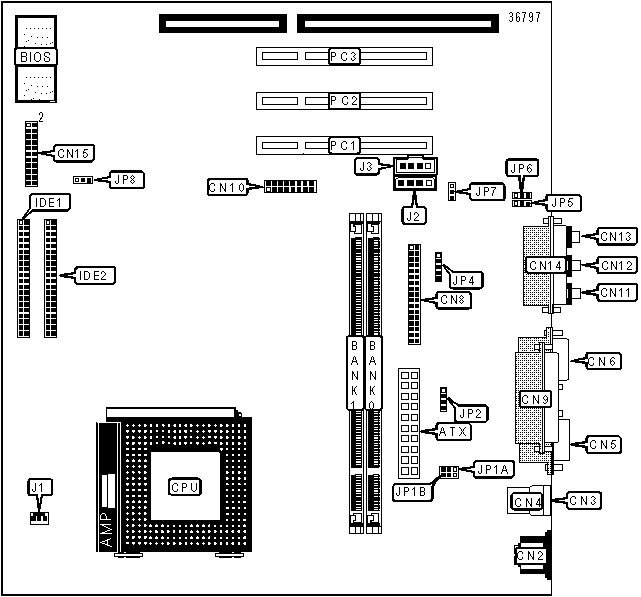

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| ATX power connector | ATX |
Turbo LED | CN15/Pins 13 & 14 |
| PS/2 mouse port | CN2 | IDE interface LED | CN15/Pins 15 & 16 |
| USB port 1 | CN3 | Reset switch | CN15/Pins 19 & 20 |
| USB port 2 | CN4 | Power switch | CN15/Pins 21 & 22 |
| Serial port 1 | CN5 | IDE interface 1 | IDE1 |
| Serial port 2 | CN6 | IDE interface 2 | IDE2 |
| Floppy drive interface | CN7 | CPU fan power | J1 |
| Parallel port | CN9 | Audio in - CD-ROM (Panasonic) | J2 |
| VGA connector | CN10 | Audio in - CD-ROM (Sony) | J3 |
| Line in | CN11 | Unidentified | JP2 |
| Microphone in | CN12 | IR connector | JP4 |
| Line out | CN13 | Digital audio out | JP5 |
| Game port | CN14 | Digital audio in - CD-ROM | JP6 |
| Power LED & keylock | CN15/Pins 2, 4, 6, 8 & 10 | 32-bit PCI slots | PC1 - PC3 |
| Speaker | CN15/Pins 1, 3, 5 & 7 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
Onboard sound selector enabled | JP7 | Pins 2 & 3 closed |
| Onboard sound selector disabled | JP7 | Pins 1 & 2 closed |
|
» |
CMOS memory normal operation | JP8 |
Pins 1 & 2 closed |
| CMOS memory clear | JP8 |
Pins 2 & 3 closed | |
| DIMM CONFIGURATION | ||
Size |
Bank 0 |
Bank 1 |
8MB |
(1) 1M x 64 |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
16MB |
(1) 2M x 64 |
None |
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
32MB |
(1) 4M x 64 |
None |
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
64MB |
(1) 8M x 64 |
None |
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
128MB |
(1) 16M x 64 |
None |
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
256MB |
(1) 32M x 64 |
None |
264MB |
(1) 32M x 64 |
(1) 1M x 64 |
272MB |
(1) 32M x 64 |
(1) 2M x 64 |
288MB |
(1) 32M x 64 |
(1) 4M x 64 |
320MB |
(1) 32M x 64 |
(1) 8M x 64 |
384MB |
(1) 32M x 64 |
(1) 16M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports EDO & SDRAM memory. | ||
CPU VOLTAGE SELECTION |
||
Voltage |
JP1A | JP1B |
| 3.3v | Pins 1 & 2 closed | Pins 1 & 2 closed |
| 5.0v | Pins 2 & 3 closed | Pins 2 & 3 closed |
