PC WARE INTERNATIONAL, INC

MB-730
Device Type Mainboard
Processor Pentium II/Celeron
Processor Speed 233/266/300/333/350/366/400/450/500MHz
Chip Set Unidentified
Video Chip Set Unidentified
Audio Chip Set Sound Pro
Maximum Onboard Memory 768MB (EDO & SDRAM)
Maximum Video Memory 8MB
Cache 0/128/256/512KB (located on the CPU)
BIOS AMI
Dimensions 305mm x 244mm
I/O Options 32-bit PCI slots (3), floppy drive interface, game/MIDI port, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB ports (2), ATX power connector, line in, line out, microphone in, audio in – CD-ROMs (2), Wake-on LAN connector

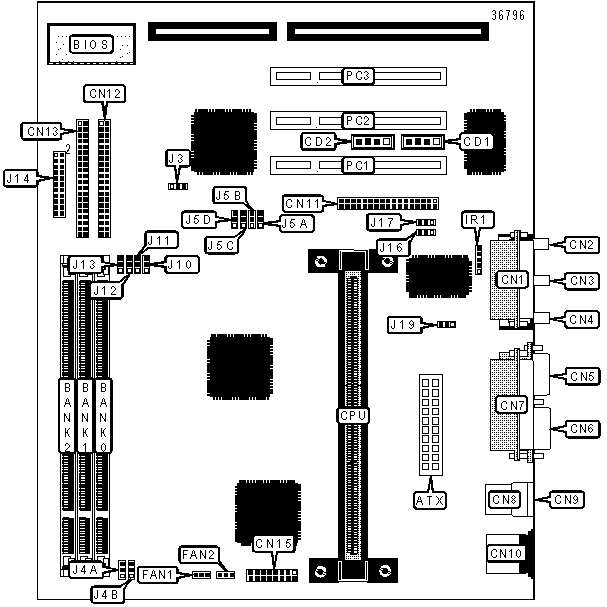

CONNECTIONS

Purpose

Location

Purpose

Location
ATX power connector

ATX

 IDE interface 2

CN13
Audio in – CD-ROM

CD1

 VGA interface

CN15
Audio in – CD-ROM

CD2

 CPU fan power

FAN1
Game/MIDI port

CN1

 Chassis fan power

FAN2
Line out

CN2

 IR connector

IR1
Microphone in

CN3

 Speaker

J14/Pins 1, 3, 5 & 7
Line in

CN4

 Power LED & keylock

J14/Pins 2, 4, 6, 8 & 10
Serial port 2

CN5

 IDE interface LED

J14/Pins 15 & 16
Serial port 1

CN6

 Reset switch

J14/Pins 17 & 18
Parallel port

CN7

 Power switch

J14/Pins 21 & 22
USB port 1

CN8

 Digital audio in

J16
USB port 2

CN9

 Digital audio out

J17
PS/2 mouse port

CN10

 Wake-on LAN connector

J19
Floppy drive interface

CN11

 32-bit PCI slots

PC1 – PC3
IDE interface 1

CN12




USER CONFIGURABLE SETTINGS

Function

Label

Position

»

 CMOS memory normal operation

J3

Pins 1 & 2 closed
  CMOS memory clear

J3

Pins 2 & 3 closed


DIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

8MB

(1) 1M x 64

None

None

16MB

(1) 2M x 64

None

None

16MB

(1) 1M x 64

(1) 1M x 64

None

24MB

(1) 2M x 64

(1) 1M x 64

None

24MB

(1) 1M x 64

(1) 1M x 64

(1) 1M x 64

32MB

(1) 4M x 64

None

None

32MB

(1) 2M x 64

(1) 1M x 64

(1) 1M x 64

32MB

(1) 2M x 64

(1) 2M x 64

None

48MB

(1) 4M x 64

(1) 1M x 64

(1) 1M x 64

48MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

64MB

(1) 8M x 64

None

None

64MB

(1) 4M x 64

(1) 2M x 64

(1) 2M x 64

64MB

(1) 4M x 64

(1) 4M x 64

None

80MB

(1) 8M x 64

(1) 1M x 64

(1) 1M x 64

96MB

(1) 8M x 64

(1) 2M x 64

(1) 2M x 64

96MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

128MB

(1) 16M x 64

None

None

128MB

(1) 8M x 64

(1) 4M x 64

(1) 4M x 64

128MB

(1) 8M x 64

(1) 8M x 64

None

144MB

(1) 16M x 64

(1) 1M x 64

(1) 1M x 64

160MB

(1) 16M x 64

(1) 2M x 64

(1) 2M x 64

192MB

(1) 16M x 64

(1) 4M x 64

(1) 4M x 64

192MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

256MB

(1) 32M x 64

None

None

256MB

(1) 16M x 64

(1) 8M x 64

(1) 8M x 64

272MB

(1) 32M x 64

(1) 1M x 64

(1) 1M x 64

288MB

(1) 32M x 64

(1) 2M x 64

(1) 2M x 64

320MB

(1) 32M x 64

(1) 4M x 64

(1) 4M x 64

384MB

(1) 32M x 64

(1) 8M x 64

(1) 8M x 64

384MB

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

512MB

(1) 32M x 64

(1) 16M x 64

(1) 16M x 64

768MB

(1) 32M x 64

(1) 32M x 64

(1) 32M x 64
Note: Board accepts EDO & SDRAM.


DIMM VOLTAGE CONFIGURATION

Voltage

J4A

J4B
»

3.3v

Pins 2 & 3 closed

Pins 2 & 3 closed


5v

Pins 1 & 2 closed

Pins 1 & 2 closed


CACHE CONFIGURATION
Note: 256KB/512KB cache is located on the Pentium II CPUs. 128KB cache is located on the Celeron 300A and greater CPUs.


CPU SPEED SELECTION (CELERON)

CPU speed

Clock speed

Multiplier

J5A

J5B

J5C

J5D

266MHz

66MHz

4x

2 & 3

1 & 2

1 & 2

1 & 2

300MHz

66MHz

4.5x

2 & 3

1 & 2

2 & 3

1 & 2

333MHz

66MHz

5x

2 & 3

2 & 3

1 & 2

1 & 2
Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (CELERON CON’T)

CPU speed

Clock speed

Multiplier

J10

J11

J12

J13

266MHz

66MHz

4x

2 & 3

2 & 3

1 & 2

2 & 3

300MHz

66MHz

4.5x

2 & 3

2 & 3

1 & 2

2 & 3

333MHz

66MHz

5x

2 & 3

2 & 3

1 & 2

2 & 3
Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (PENTIUM II - 66MHZ SDRAM)

CPU speed

Clock speed

Multiplier

J5A

J5B

J5C

J5D

233MHz

66MHz

3.5x

1 & 2

2 & 3

2 & 3

1 & 2

266MHz

66MHz

4x

2 & 3

1 & 2

1 & 2

1 & 2

300MHz

66MHz

4.5x

2 & 3

1 & 2

2 & 3

1 & 2

333MHz

66MHz

5x

2 & 3

2 & 3

1 & 2

1 & 2

350MHz

100MHz

3.5x

1 & 2

2 & 3

2 & 3

1 & 2

366MHz

66MHz

5.5x

2 & 3

2 & 3

2 & 3

1 & 2

400MHz

100MHz

4x

2 & 3

1 & 2

1 & 2

1 & 2

450MHz

100MHz

4.5x

2 & 3

1 & 2

2 & 3

1 & 2

500MHz

100MHz

5x

2 & 3

2 & 3

1 & 2

1 & 2
Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (PENTIUM II - 66MHZ SDRAM CON’T)

CPU speed

Clock speed

Multiplier

J10

J11

J12

J13

233MHz

66MHz

3.5x

2 & 3

2 & 3

2 & 3

1 & 2

266MHz

66MHz

4x

2 & 3

2 & 3

1 & 2

2 & 3

300MHz

66MHz

4.5x

2 & 3

2 & 3

1 & 2

2 & 3

333MHz

66MHz

5x

2 & 3

2 & 3

1 & 2

2 & 3

350MHz

100MHz

3.5x

1 & 2

1 & 2

1 & 2

2 & 3

366MHz

66MHz

5.5x

2 & 3

2 & 3

1 & 2

2 & 3

400MHz

100MHz

4x

1 & 2

1 & 2

1 & 2

2 & 3

450MHz

100MHz

4.5x

1 & 2

1 & 2

1 & 2

2 & 3

500MHz

100MHz

5x

1 & 2

1 & 2

1 & 2

2 & 3
Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (PENTIUM II - 100MHZ SDRAM)

CPU speed

Clock speed

Multiplier

J5A

J5B

J5C

J5D

266MHz

66MHz

4x

2 & 3

1 & 2

1 & 2

1 & 2

300MHz

66MHz

4.5x

2 & 3

1 & 2

2 & 3

1 & 2

333MHz

66MHz

5x

2 & 3

2 & 3

1 & 2

1 & 2

350MHz

100MHz

3.5x

1 & 2

2 & 3

2 & 3

1 & 2

366MHz

66MHz

5.5x

2 & 3

2 & 3

2 & 3

1 & 2

400MHz

100MHz

4x

2 & 3

1 & 2

1 & 2

1 & 2

450MHz

100MHz

4.5x

2 & 3

1 & 2

2 & 3

1 & 2

500MHz

100MHz

5x

2 & 3

2 & 3

1 & 2

1 & 2
Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (PENTIUM II - 100MHZ SDRAM CON’T)

CPU speed

Clock speed

Multiplier

J10

J11

J12

J13

266MHz

66MHz

4x

2 & 3

2 & 3

1 & 2

2 & 3

300MHz

66MHz

4.5x

2 & 3

2 & 3

1 & 2

2 & 3

333MHz

66MHz

5x

2 & 3

2 & 3

1 & 2

2 & 3

350MHz

100MHz

3.5x

1 & 2

1 & 2

1 & 2

1 & 2

366MHz

66MHz

5.5x

2 & 3

2 & 3

1 & 2

2 & 3

400MHz

100MHz

4x

1 & 2

1 & 2

1 & 2

1 & 2

450MHz

100MHz

4.5x

1 & 2

1 & 2

1 & 2

1 & 2

500MHz

100MHz

5x

1 & 2

1 & 2

1 & 2

1 & 2
Note: Pins designated should be in the closed position.
