COMPAQ COMPUTER CORPORATION
PROLIANT 7000
| Device Type | Mainboard |
| Processor | Pentium II/Pentium III Xeon |
| Processor Speed | 400/450MHz |
| Chip Set | Unidentified |
| Video Chip Set | Unidentified |
| Maximum Onboard Memory | 8GB (EDO supported) |
| Maximum Video Memory | Unidentified |
| Cache | 1024/2048KB (located on Pentium II CPU) |
| BIOS | Unidentified |
| Dimensions | Unidentified |
| I/O Options (I/O board) | 64-bit PCI slots (5), 32-bit PCI slots (4), ISA Modem slot, SCSI interfaces (5), |
| I/O Options (Processor board) | External memory card, serial ports (2), |
| I/O Options (Peripheral board) | Floppy drive interface, IDE interface, SCSI interface, parallel port, PS/2 mouse port, VGA port |

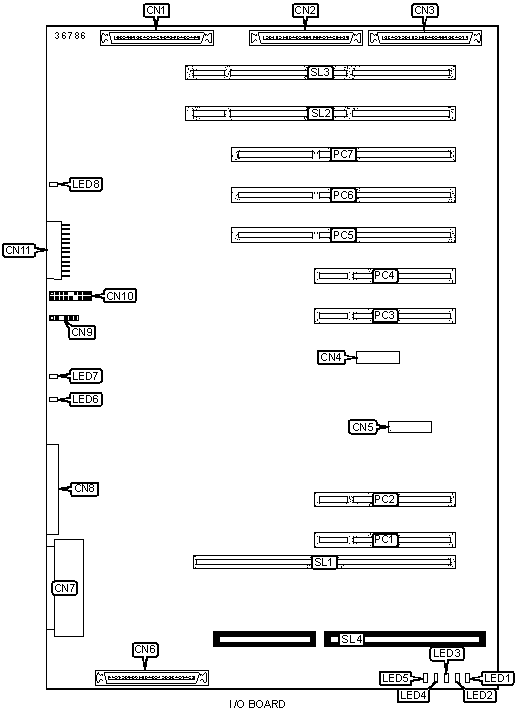

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| SCSI connector | CN1 | Power switch & interlock connector | CN9 |
| SCSI connector | CN2 | Fan & PC speaker connector | CN10 |
| SCSI connector | CN3 | Power connector | CN11 |
| I/O terminator connector | CN4 | 32-bit PCI slots | PC1 - PC4 |
| I/O terminator connector | CN5 | 64-bit PCI slots | PC5 - PC7 |
| SCSI connector | CN6 | Standard peripheral board slot | SL1 |
| SCSI connector | CN7 | 64-bit PCI with Extended SCSI slots | SL2 - SL3 |
| Power ribbon connector | CN8 | ISA Modem slot | SL4 |
DIAGNOSTIC LED(S) |
|||
LED6 |
LED7 |
LED8 |
Condition |
| Off | On | Off | Board is operating in normal mode |
| Off | On | On | Fault detected in power switch cable or standard peripheral board |
| On | On | On | Fault detected in processors, processor board power cables, processor temination board, connection between processor board and I/O board, memory board and/or air sensor/interlock cable |
| Off | Off | Off | Fault detected in power ribbon cable or AC power cord/power supply |
| Note: LED1 through LED5 provide information about the level of voltage present on the I/O board. The voltage is stamped on the board next to the corresponding LED; no other information is provided. | |||

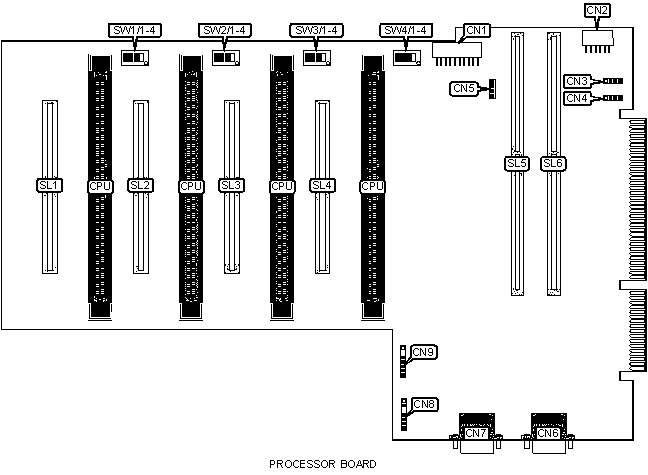

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| Power connector (5V and 12V) | CN1 | Serial port 2 | CN7 |
| Power connector (3V) | CN2 | Fan power connector for internal devices | CN8 |
| Power connector for removable media | CN3 | Fan power connector for external hot-plug device | CN9 |
| Power connector for removable media | CN4 | Processor Power module slots | SL1 - SL4 |
| Air sensor/interlock connector | CN5 | Memory board slots | SL5 - SL6 |
| Serial port 1 | CN6 | ||
CPU SPEED SELECTION - PROCESSOR ONE |
||||
Speed |
SW4/1 | SW4/2 | SW4/3 | SW4/4 |
400MHz |
On | On | On | Off |
450MHz |
Off | On | On | Off |
CPU SPEED SELECTION - PROCESSOR TWO |
||||
Speed |
SW3/1 | SW3/2 | SW3/3 | SW3/4 |
400MHz |
On | On | On | Off |
450MHz |
Off | On | On | Off |
CPU SPEED SELECTION - PROCESSOR THREE |
||||
Speed |
SW2/1 | SW2/2 | SW2/3 | SW2/4 |
400MHz |
On | On | On | Off |
450MHz |
Off | On | On | Off |
CPU SPEED SELECTION - PROCESSOR FOUR |
||||
Speed |
SW1/1 | SW1/2 | SW1/3 | SW1/4 |
400MHz |
On | On | On | Off |
450MHz |
Off | On | On | Off |
CACHE CONFIGURATION |
| Note: 1024/2048KB cache is located on the Pentium II CPU. |

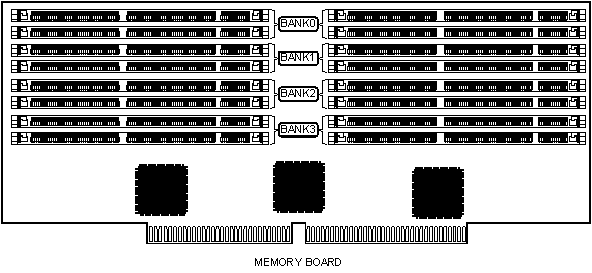

DIMM CONFIGURATION |
||||
Size |
Bank 0 |
Bank 1 | Bank 2 | Bank 3 |
64MB |
(4) 2MB x 64 |
None | None | None |
| 128MB | (4) 4MB x 64 | None | None | None |
| 128MB | (4) 2MB x 64 |
(4) 2MB x 64 | None | None |
| 192MB | (4) 4MB x 64 |
(4) 2MB x 64 | None | None |
| 192MB | (4) 2MB x 64 |
(4) 2MB x 64 | (4) 2MB x 64 | None |
| 256MB | (4) 4MB x 64 |
(4) 4MB x 64 | None | None |
| 256MB | (4) 2MB x 64 |
(4) 2MB x 64 | (4) 2MB x 64 | (4) 2MB x 64 |
| 256MB | (4) 8MB x 64 |
None | None | None |
| 320MB | (4) 8MB x 64 | (4) 2MB x 64 | None | None |
| 320MB | (4) 4MB x 64 | (4) 4MB x 64 | (4) 2MB x 64 | None |
| 384MB | (4) 8MB x 64 | (4) 4MB x 64 | None | None |
| 384MB | (4) 4MB x 64 | (4) 4MB x 64 | (4) 4MB x 64 | None |
| 384MB | (4) 4MB x 64 | (4) 4MB x 64 | (4) 2MB x 64 | (4) 2MB x 64 |
| 448MB | (4) 8MB x 64 | (4) 4MB x 64 | (4) 2MB x 64 | None |
| 448MB | (4) 4MB x 64 | (4) 4MB x 64 | (4) 4MB x 64 | (4) 2MB x 64 |
| 512MB | (4) 16MB x 64 | None | None | None |
| 512MB | (4) 8MB x 64 | (4) 8MB x 64 | None | None |
| 512MB | (4) 8MB x 64 | (4) 4MB x 64 | (4) 4MB x 64 | None |
| 512MB | (4) 4MB x 64 | (4) 4MB x 64 | (4) 4MB x 64 | (4) 4MB x 64 |
| 576MB | (4) 16MB x 64 | (4) 2MB x 64 | None | None |
| 576MB | (4) 8MB x 64 | (4) 8MB x 64 | (4) 2MB x 64 | None |
| 576MB | (4) 8MB x 64 | (4) 4MB x 64 | (4) 4MB x 64 | (4) 2MB x 64 |
| 640MB | (4) 16MB x 64 | (4) 4MB x 64 | None | None |
| 640MB | (4) 8MB x 64 | (4) 8MB x 64 | (4) 4MB x 64 | None |
| 640MB | (4) 8MB x 64 | (4) 4MB x 64 | (4) 4MB x 64 | (4) 4MB x 64 |
| 704MB | (4) 16MB x 64 | (4) 4MB x 64 | (4) 2MB x 64 | None |
| 704MB | (4) 8MB x 64 | (4) 8MB x 64 | (4) 4MB x 64 | (4) 2MB x 64 |
| 768MB | (4) 16MB x 64 | (4) 4MB x 64 | (4) 2MB x 64 | (4) 2MB x 64 |
| 768MB | (4) 8MB x 64 | (4) 8MB x 64 | (4) 4MB x 64 | (4) 4MB x 64 |
| 832MB | (4) 16MB x 64 | (4) 8MB x 64 | (4) 2MB x 64 | None |
| 832MB | (4) 16MB x 64 | (4) 4MB x 64 | (4) 4MB x 64 | (4) 2MB x 64 |
| 896MB | (4) 16MB x 64 | (4) 8MB x 64 | (4) 4MB x 64 | None |
| 896MB | (4) 16MB x 64 | (4) 4MB x 64 | (4) 4MB x 64 | (4) 4MB x 64 |
| 960MB | (4) 16MB x 64 | (4) 8MB x 64 | (4) 4MB x 64 | (4) 2MB x 64 |
1GB |
(4) 32MB x 64 |
None | None | None |
| 1.5GB | (4) 32MB x 64 | (4) 16MB x 64 | None | None |
2GB |
(4) 32MB x 64 |
(4) 32MB x 64 | None | None |
2.5GB |
(4) 32MB x 64 |
(4) 32MB x 64 | (4) 16MB x 64 | None |
| 3GB | (4) 32MB x 64 |
(4) 32MB x 64 | (4) 32MB x 64 | None |
| 3.5GB | (4) 32MB x 64 |
(4) 32MB x 64 | (4) 32MB x 64 | (4) 16MB x 64 |
4GB |
(4) 32MB x 64 |
(4) 32MB x 64 | (4) 32MB x 64 | (4) 32MB x 64 |
| Note: Board
supports EDO memory. Note: The ProLiant 7000 supports two memory expansion boards for a maximum onboard memory of 8GB. |
||||

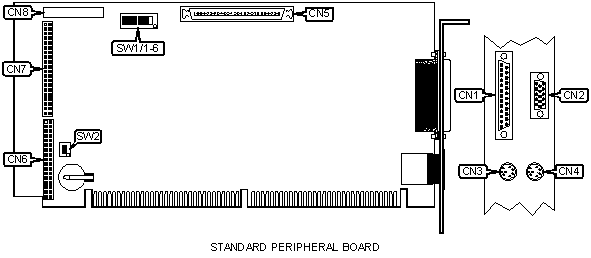

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| Parallel port | CN1 | SCSI connector | CN5 |
| VGA port | CN2 | IDE interface | CN6 |
| Keyboard port | CN3 | Floppy drive interface | CN7 |
| PS/2 mouse port | CN4 | IMD connector | CN8 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | On board video enabled | SW1/1 | Off |
| On board video disabled | SW1/1 | On | |
| » | Factory configured - do not alter | SW1/2 | Off |
| » | Factory configured - do not alter | SW1/3 | On |
| » | Boot from diskette disabled | SW1/4 | Off |
| Boot from diskette enabled | SW1/4 | On | |
| » | Password enabled | SW1/5 | Off |
| Passwords cleared and disabled | SW1/5 | On | |
| » | Validate NVRAM | SW1/6 | Off |
| Invalidate and clear NVRAM | SW1/6 | On | |
|
Internal battery enabled | SW2 | Off |
| External battery enabled | SW2 | On | |
