ZIDA TECHNOLOGIES, LTD.
BX3D-CT (VER. 1.01)
| Device Type | Mainboard |
| Processor | Celeron |
| Processor Speed | 200/233/266/300/333/366MHz |
| Chip Set | VIA |
| Maximum Onboard Memory | 768MB (SDRAM supported) |
| Cache | 0/128KB (located on the Celeron CPU) |
| BIOS | Award |
| Dimensions | Unidentified |
| I/O Options | 32-bit PCI slots (4), floppy drive interface, IDE interfaces (2), parallel interface, PS/2 mouse interface, serial interfaces (2), IR connector, USB interfaces (2), ATX power connector, AGP slot, audio header connector, audio in - CD-ROMs (2), Wake-on-LAN connector |

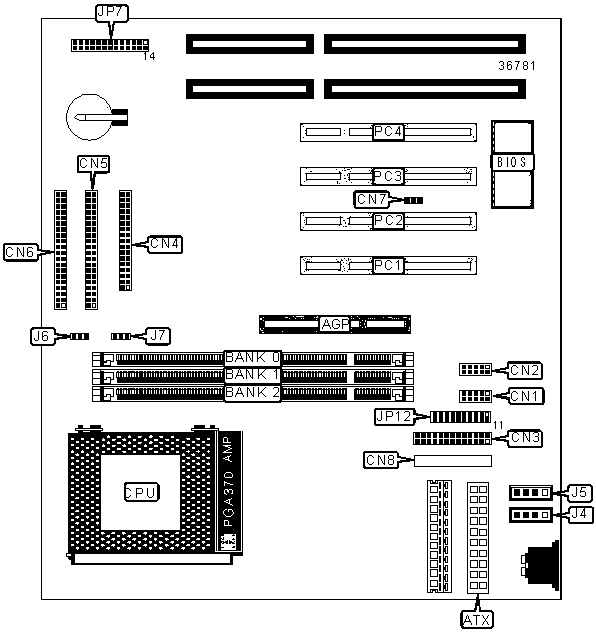

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP |
CPU fan power | J7 |
| ATX power connector | ATX |
Power LED & keylock | JP7/Pins 1-5 |
| Serial interface 1 | CN1 | SMI switch | JP7/Pins 7 & 8 |
| IR/Serial interface 2 | CN2 | Speaker | JP7/Pins 10-13 |
| Parallel interface | CN3 | IDE interface LED | JP7/Pins 14 & 15 |
| Floppy drive interface | CN4 | Power switch | JP7/Pins 17 & 18 |
| IDE interface 2 | CN5 | Reset switch | JP7/Pins 22 & 23 |
| IDE interface 1 | CN6 | Turbo LED | JP7/Pins 25 & 26 |
| Wake-on-LAN connector | CN7 | USB interface 1 | JP12/Pins 1-5 |
| Audio connector | CN8 | USB interface 2 | JP12/Pins 11-15 |
| Audio in - CD-ROM 1 | J4 | PS/2 mouse interface | JP12/Pins 6-10 |
| Audio in - CD-ROM 2 | J5 | IR connector | JP12/Pins 16-20 |
| CPU fan power | J6 | 32-bit PCI slots | PC1 - PC4 |
DIMM CONFIGURATION |
|||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 32M x 64 |
None |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
272MB |
(1) 32M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
288MB |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
320MB |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
384MB |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
512MB |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports SDRAM memory. | |||
CACHE CONFIGURATION |
| Note: 128KB cache is located on the Celeron 300A and greater CPUs. |
