DIAMOND MULTIMEDIA SYSTEMS, INC.
STEALTH III S540 (AGP)
| Card Type | Video card |
| Video Chip Set | S3 |
| Maximum Video Memory | 32MB SDRAM |
| Video Types Supported | VGA, MPEG-1, MPEG-2 |
| Highest Resolution Supported | 1920 x 1080 |
| Data Bus | AGP |

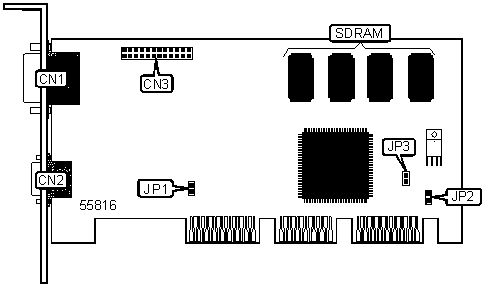

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| 15-pin analog video port | CN1 | Unidentified | CN3 |
| Unidentified | CN2 | ||
AGP INTERFACE SELECTION |
||||
AGP |
JP1 |
JP2 |
JP3 | |
| » | 1x/2x |
Open | Open | Open |
4x |
Closed | Closed | Closed | |
M ISCELLANEOUS TECHNICAL NOTES |
Stealth III S540 card is available in a 16MB version. |
