DIGITAL VIEW COMPANY
AC-0800 (4164200-3X)
| Card Type | Video interface controller |
| Video Chip Set | Unidentified |
| Maximum Video Memory | Unidentified |
| Video Types Supported | VGA, SVGA |
| Highest Resolution Supported | 800 x 600 |
| Data Bus | External |

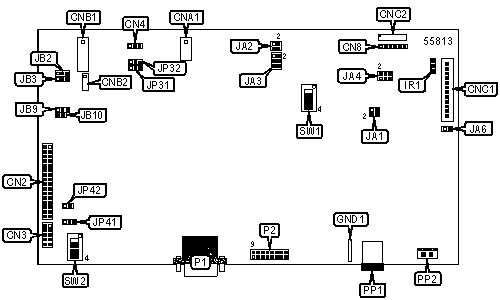

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Panel signal connector | CN2 | Function controls connector (alternate) | CNC2 |
| Panel signal connector | CN3 | Unidentified | GND1 |
| LED connector | CN4 | IR connector | IR1 |
| RS-232 serial interface | CN8 | VGA analog input port | P1 |
| Auxiliary power connector | CNA1 | VGA input interface | P2 |
| Backlight inverter connector | CNB1 | DC power connector | PP1 |
| Backlight inverter connector (alternate) | CNB2 | DC power connector (alternate) | PP2 |
| Function controls connector | CNC1 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | Factory configured - do not alter | JA1 | Pins 1 & 3, 2 & 4 closed |
| » | Factory configured - do not alter | JA2 | Pins 1 & 3, 2 & 4 closed |
| Panel voltage supply is +3.3V | JA3 | Pins 1 & 3, 2 & 4 closed | |
| Panel voltage supply is +5V | JA3 | Pins 3 & 5, 4 & 6 closed | |
| RS-232 voltage is +12V | JA4 | Pins 1 & 3, 2 & 4 closed | |
| RS-232 voltage is +5V | JA4 | Pins 3 & 5, 4 & 6 closed | |
| Alternate power switch on | JA6 | Closed | |
| Alternate power switch off | JA6 | Open | |
| Backlight inverter on/off control signal high = CCFT ON | JB3 | Pins 1 & 2 closed | |
| Backlight inverter on/off control signal low = CCFT ON | JB3 | Pins 2 & 3 closed | |
| » | Backlight inverter status is active low | JB9 | Pins 1 & 2 closed |
| Backlight inverter status is active high | JB9 | Pins 2 & 3 closed | |
| » | Backlight power control by MCU | JB10 | Pins 1 & 2 closed |
| Backlight power control always enabled | JB10 | Pins 2 & 3 closed | |
| Panel type is LG LP064V1 | JP41 | Pins 1 & 2 closed | |
| Panel type is not LG LP064V1 | JP41 | Open | |
| » | Factory configured - do not alter | JP42 | Open |
| » | Factory configured - do not alter | SW1/1 | On |
| » | Factory configured - do not alter | SW1/2 | On |
| Clock phase change (TFT panel) | SW2/1 | Unidentified | |
| Video input and output locked | SW2/2 | On | |
| Video input and output not locked | SW2/2 | Off | |
| » | Factory configured - do not alter | SW2/3 | Off |
| » | Factory configured - do not alter | SW2/4 | Off |
| Note: Damage to inverter may occur if JB2 settings are incorrect. | |||
BACKLIGHT INVERTER VOLTAGE SELECTION |
|
Backlight inverter on/off control signal |
JB2 |
| High = +12V | Pins 1 & 2 closed |
| High = +5V | Pins 2 & 3 closed |
| High = Open collector | Open |
| Note: Damage to inverter may occur if JB3 settings are incorrect. | |
PANEL VIDEO SELECTION |
||
Video Type |
JP31 | JP32 |
| TFT/DSTN VGA | Open | Open |
| TFT SVGA | Open | Pins 1 & 2 closed |
| DSTN SVGA | Pins 2 & 3 closed | Pins 2 & 3 closed |
Note: The firmware stored in U10 decides if the video type is TFT VGA or DSTN VGA. |
||
MISCELLANEOUS TECHNICAL NOTES |
This video controller is for use with LCD and flat panel display applications. Adequate insulation should be used for all areas of the PCB, especially in high voltage parts such as the inverter. Settings can be controlled by an analog VR or digital function control device. |
