GIGA-BYTE TECHNOLOGY CO., LTD.
GA-660PLUS DFP
| Card Type | Video card |
| Video Chip Set | NVIDIA |
| Maximum Video Memory | 32MB DRAM |
| Video Types Supported | VGA, SVGA |
| Highest Resolution Supported | 2048 x 1536 |
| Data Bus | AGP |

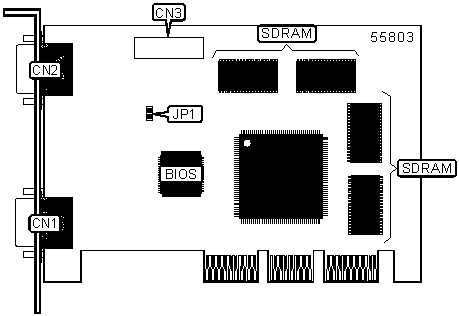

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| 15-pin analog video port | CN1 | Proprietary (VIP) port | CN3 |
| Digital Flat Panel port | CN2 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | Engine clock and memory clock speeds are normal | JP1 | Closed |
| Turbo enabled for over clocking | JP1 | Open | |
| MEMORY CONFIGURATION | ||
S ize |
BANK 0 | BANK 1 |
1 6MB |
(4) 2M | (4) 2M |
3 2MB |
(2) 8M | (2) 8M |
Note: Video card comes with memory in place and is not upgradable. |
||
