CORECO, INC.
COBRA/C6
| Card Type | Video capture board |
| Video Chip Set | Texas Instruments |
| Maximum Video Memory | 48MB SDRAM |
| Video Types Supported | Unidentified |
| Highest Resolution Supported | 768 x 576 |
| Data Bus | 32-bit PCI |

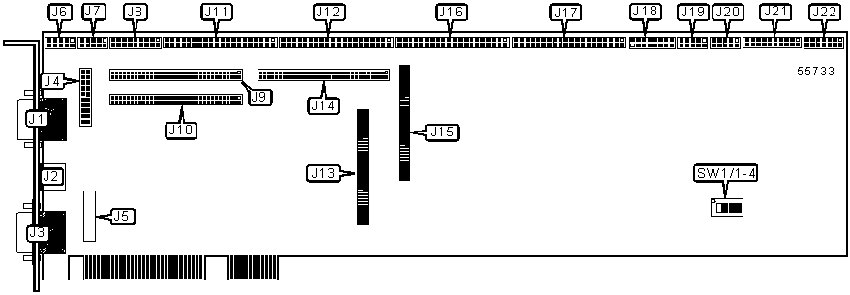

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| 9-pin video input port 1 | J1 | RS-422 control connector | J12 |
| 8-pin VGA input port | J2 | Display module connector | J13 |
| 9-pin video input port 2 | J3 | Microcontroller bus connector | J14 |
| Daughterboard anolog extension connector | J4 | RTP Module connector | J15 |
| Reserved | J5 | Auxiliary bus connector | J16 |
| Microcontroller serial interface | J6 | Auxiliary bus connector | J17 |
| Extension cable connector | J7 | CPU emulator connector | J18 |
| Microcontroller I/O connector | J8 | Serial interface | J19 |
| Extension input connector 1 | J9 | Lattice program connector | J20 |
| Extension input connector 2 | J10 | DSP serial interface and timer | J21 |
| RS-422 data connector | J11 | DSP emulator connector | J22 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | i960 boots from application | SW1/1 | Off |
| i960 boots from boot block | SW1/1 | On | |
| » | PCI class selection bridge device | SW1/2 | Off |
| PCI class selection multimedia device | SW1/2 | On | |
| » | Factory configured - do not alter | SW1/3 | Off |
| » | Test mode selection normal operation | SW1/4 | Off |
| Test mode selection automatic test | SW1/4 | On | |
