CORECO, INC.
VIPER RGB
| Card Type | Video capture board |
| Video Chip Set | Intel |
| Maximum Video Memory | Unidentified |
| Video Types Supported | Unidentified |
| Highest Resolution Supported | Unidentified |
| Data Bus | 32-bit PCI |

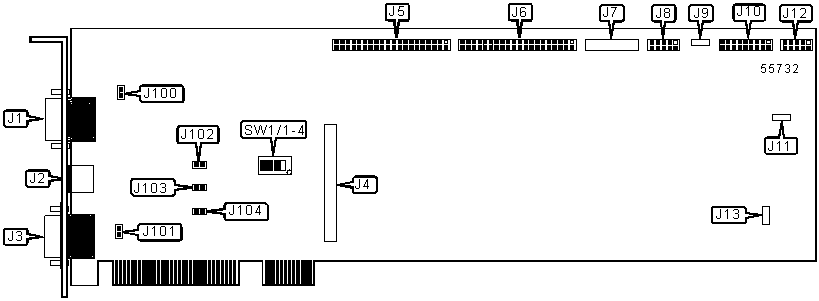

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| 9-pin video input port 1 | J1 | Serial interface | J8 |
| 8-pin acquisition control port | J2 | Reserved | J9 |
| 9-pin video input port 2 | J3 | Microcontroller I/O connector | J10 |
| Reserved | J4 | Reserved | J11 |
| Auxiliary bus connector | J5 | Microcontroller serial interface | J12 |
| Auxiliary bus connector | J6 | Reserved | J13 |
| Reserved | J7 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| Non-differential cable connected to J1 | J100 | Closed | |
| Differential cable connected to J1 | J100 | Open | |
| Non-differential cable connected to J3 | J101 | Closed | |
| Differential cable connected to J3 | J101 | Open | |
| » | Factory configured - do not alter | J102 | Open |
| » | Factory configured - do not alter | J103 | Open |
| » | Factory configured - do not alter | J104 | Open |
| » | i960 boots from application | SW1/1 | Off |
| i960 boots from boot block | SW1/1 | On | |
| » | PCI class selection bridge device | SW1/2 | Off |
| PCI class selection multimedia device | SW1/2 | On | |
| » | Factory configured - do not alter | SW1/3 | Off |
| » | Test mode selection normal operation | SW1/4 | Off |
| Test mode selection test mode | SW1/4 | On | |
