CORECO, INC.
VIPER-QUAD
| Card Type | Video capture board |
| Video Chip Set | Texas Instruments |
| Maximum Video Memory | Unidentified |
| Video Types Supported | Unidentified |
| Highest Resolution Supported | Unidentified |
| Data Bus | 32-bit PCI |

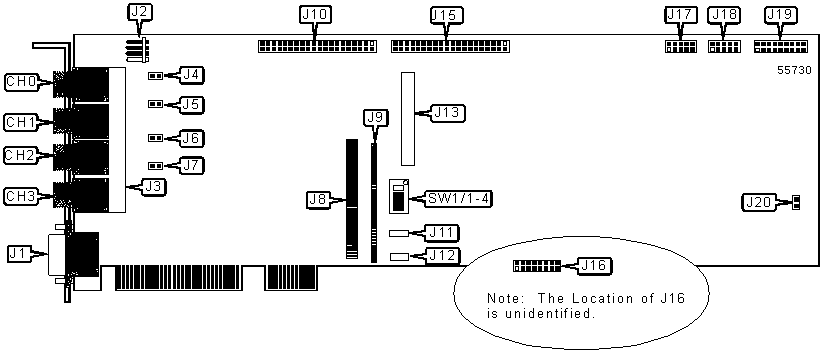

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| 12-pin Hirose connector Channel 0 | CH0 | I/O interface | J9 |
| 12-pin Hirose connector Channel 1 | CH1 | Auxiliary bus connector | J10 |
| 12-pin Hirose connector Channel 2 | CH2 | Reserved | J11 |
| 12-pin Hirose connector Channel 3 | CH3 | Reserved | J12 |
| 9-pin Trigger port | J1 | Reserved | J13 |
| Power connector | J2 | Auxiliary bus connector | J15 |
| Hirose connectors (4) interface | J3 | i960 CPU emulator connector | J16 |
| Reserved | J4 | Microcontroller serial interface | J17 |
| Reserved | J5 | Serial interface | J18 |
| Reserved | J6 | Microcontroller I/O interface | J19 |
| Reserved | J7 | Reserved | J20 |
| Display Module connector | J8 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | i960 boots from application | SW1/1 | Off |
| i960 boots from boot block | SW1/1 | On | |
| » | PCI class selection bridge device | SW1/2 | Off |
| PCI class selection multimedia device | SW1/2 | On | |
| » | Factory configured - do not alter | SW1/3 | Off |
| » | Test mode selection normal operation | SW1/4 | Off |
| Test mode selection automatic test | SW1/4 | On | |
