CORECO, INC.
RGB-SE
| Card Type | Video capture board |
| Video Chip Set | Unidentified |
| Maximum Video Memory | Unidentified |
| Video Types Supported | Unidentified |
| Highest Resolution Supported | 768 x 576 |
| Data Bus | 32-bit PCI |

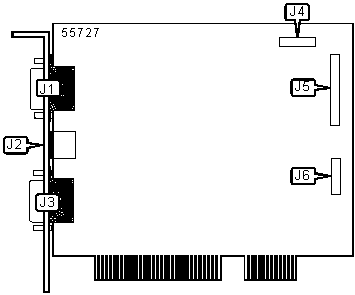

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| 9-pin component video port A | J1 | Reserved | J4 |
| 8-pin DIN port | J2 | Reserved | J5 |
| 9-pin component video port B | J3 | Reserved | J6 |
