AZTECH LABS, INC.
TNT2-AGP(B)
| Card Type | Video card |
| Video Chip Set | NVIDIA |
| Maximum Video Memory | 16MB SDRAM |
| Video Types Supported | VGA, XVGA |
| Highest Resolution Supported | 2048 x 1536 |
| Data Bus | AGP |

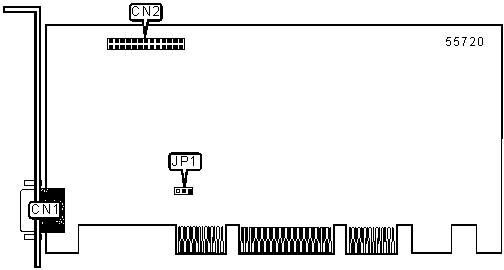

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| 15-pin analog video port | CN1 | Feature connector (VGA) | CN2 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | AGP bus speed selection 2x | JP1 | Pins 1 & 2 closed |
| AGP bus speed selection 4x | JP1 | Pins 2 & 3 closed | |
