AZTECH LABS, INC.
TNT2-AGP
| Card Type | Video card |
| Video Chip Set | NVIDIA |
| Maximum Video Memory | 32MB SDRAM |
| Video Types Supported | VGA, XVGA |
| Highest Resolution Supported | 2048 x 1536 |
| Data Bus | AGP |

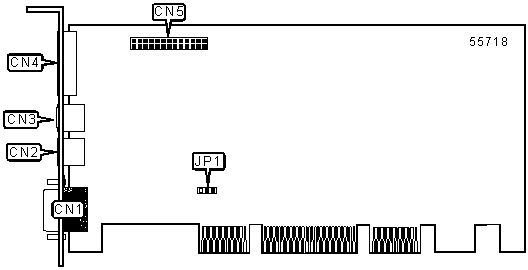

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| 15-pin analog video port | CN1 | Digital flat panel port | CN4 |
| S-video out | CN2 | Feature connector (VGA) | CN5 |
| TV out (NTSC/PAL) | CN3 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | AGP bus speed selection 2x | JP1 | Pins 1 & 2 closed |
| AGP bus speed selection 4x | JP1 | Pins 2 & 3 closed | |
