ATI TECHNOLOGIES, INC.
XPERT@WORK 2MB
| Card Type | Video card |
| Video Chip Set | ATI Technologies, Inc. |
| Maximum Video Memory | 6MB SGRAM |
| Video Types Supported | VGA |
| Highest Resolution Supported | 1600 x 1200 |
| Data Bus | 32-bit PCI |

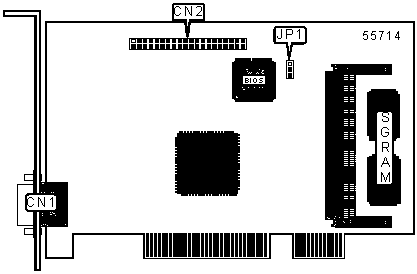

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| 15-pin analog video port | CN1 | Feature connector | CN2 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | IRQ disabled | JP1 | Pins 1 & 2 closed |
| IRQ enabled | JP1 | Pins 2 & 3 closed | |
