NEC TECHNOLOGIES, INC.
APC-H445
| Card Type | Video card |
| Video Chip Set | Unidentified |
| Maximum Video Memory | Unidentified |
| Video Types Supported | Unidentified |
| Highest Resolution Supported | Unidentified |
| Data Bus | 16-bit ISA |

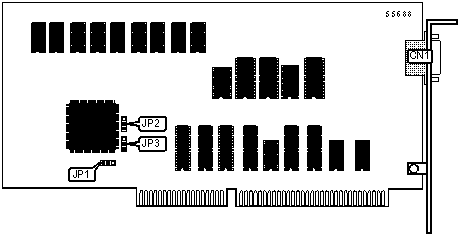

| CONNECTIONS TABLE | |
| Function | Label |
| Video connector | CN1 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | High resolution oscillator enable | JP1 |
Pins 1 & 2 closed |
| External resolution oscillator enable | JP1 |
Pins 2 & 3 closed |
|
| » | 16-bit BIOS ROM datapath | JP2 |
Pins 1 & 2 closed |
| 16-bit BIOS ROM datapath | JP2 |
Pins 2 & 3 closed |
|
| » | Option slot sense enable | JP3 |
Pins 2 & 3 closed |
| Option slot sense disable | JP3 |
Pins 1 & 2 closed |
|
