NEC TECHNOLOGIES, INC.
G9XZT
| Card Type | Video card |
| Video Chip Set | Unidentified |
| Maximum Video Memory | Unidentified |
| Video Types Supported | Unidentified |
| Highest Resolution Supported | Unidentified |
| Data Bus | 8-bit ISA |

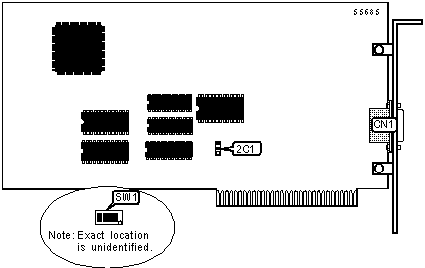

CONNECTIONS TABLE |
|
| Function | Label |
| Video connector | CN1 |
USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| » | Factory configured - do not alter | 2C1 |
Pins 2 & 3 closed |
PRIMARY DISPLAY SELECTION: SW1 |
|||||
Function |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
| Secondary 40 x 25 colors | On |
Off |
On |
Off |
|
| Secondary 80 x 25 colors | Off |
Off |
On |
Off |
|
SECONDARY DISPLAY SELECTION: SW1 |
|||||
Function |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
| Primary 40 x 25 colors | On |
On |
Off |
On |
|
| Primary 80 x 25 colors | Off |
On |
On |
On |
|
