NEC TECHNOLOGIES, INC.
APC-H444 (Ver. 1)
| Card Type | Video card |
| Video Chip Set | Unidentified |
| Maximum Video Memory | Unidentified |
| Video Types Supported | Monochrome, CGA, MDA, Hercules |
| Highest Resolution Supported | Unidentified |
| Data Bus | 8-bit ISA |

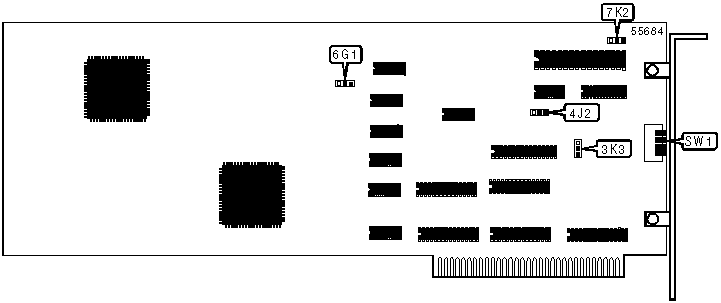

USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| » | Ready signal for CPU | 6G1 |
Pins 2 & 3 closed |
| Ready signal for CPU (Alternate setting) | 6G1 |
Pins 1 & 2 closed |
|
| » | 256KB memory capacity | 7K2 |
Pins 1 & 2 closed |
| 64KB memory capacity | 7K2 |
Pins 2 & 3 closed |
|
| » | Port 3 I/O address enable | 4J2 |
Pins 1 & 2 closed |
| Port 3 I/O address disable | 4J2 |
Pins 1 & 2 closed |
|
| » | Displays for Advanced Color Display resolution or higher. | 3K3 |
Pins 1 & 2 closed |
| Resolutions lower than Advanced Color Display | 3K3 |
Pins 2 & 3 closed |
|
DISPLAY SELECTION: SW1 |
|||||
Function |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
| 40 x 25 color | On |
Off |
Off |
On |
|
| 80 x 25 color | Off |
Off |
Off |
On |
|
| » | Advanced Color Display; high resolution | Off |
On |
On |
Off |
| Advanced Color Display; emulation | On |
On |
On |
Off |
|
| Monochrome | On |
Off |
On |
Off |
|
| Monochrome | Off |
Off |
On |
Off |
|
| Note: Advanced Graphics Board Plus as the Primary Display Board. | |||||
DISPLAY SELECTION: SW1 |
|||||
Function |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
| 40 x 25 color | On |
On |
On |
On |
|
| 80 x 25 color | Off |
On |
On |
On |
|
| Advanced Color Display; high resolution | Off |
Off |
On |
On |
|
| Advanced Color Display; emulation | On |
Off |
On |
On |
|
| Monochrome | On |
On |
Off |
On |
|
| Monochrome | Off |
On |
On |
On |
|
| Note: Advanced Graphics Board Plus as the Secondary Display Board. | |||||
