Card Type

Video card

Video Chip Set

Intel 740

Maximum Video Memory

8MB

Video Types Supported

VGA

Highest Resolution Supported

1600 x 1200

Data Bus

AGP

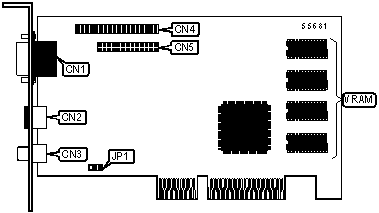

CONNECTIONS

Function

Label

Function

Label

15-pin VGA connector

CN1

VMI connector

CN4

S-Video connector (optional)

CN2

Feature connector

CN5

RCA Jack (optional)

CN3

USER CONFIGURABLE SETTINGS

Function

Label

Position

Enable NTSC System mode

JP1

Pins 1 & 2 closed

Enable PAL TV System mode

JP1

Pins 2 & 3 closed

VIDEO MEMORY CONFIGURATION

Note: The video memory is not configurable.
