Card Type

Video card

Video Chip Set

S3

Maximum Video Memory

4MB

Video Types Supported

SVGA

Highest Resolution Supported

768 x 576

Data Bus

32-bit PCI

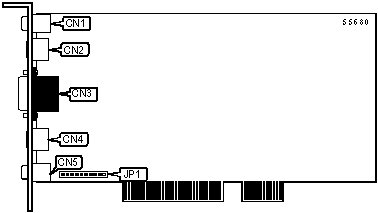

CONNECTIONS

Function

Label

Function

Label

RCA Video connector in

CN1

S-Video connector out

CN4

S-Video connector in

CN2

RCA Video connector out

CN5

9-pin digital video port

CN3

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Normal Operation

JP1

Pins 1 & 2 closed

FX Chip Operation

JP1

Pins 3 & 4 closed
