GIGA-BYTE TECHNOLOGY CO., LTD.
GA-622
| Card Type | Video card |
| Video Chip Set | NVIDIA |
| Maximum Video Memory | 32MB DRAM |
| Video Types Supported | VGA |
| Highest Resolution Supported | 1920 x 1200 |
| Data Bus | AGP |

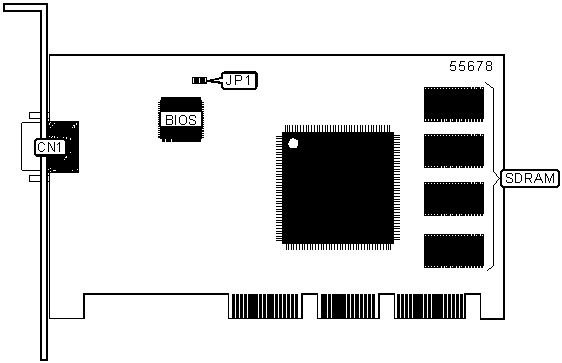

CONNECTIONS |
|
Function |
Label |
| 15-pin analog video port | CN1 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | Engine clock and memory clock speeds are normal | JP1 | Closed |
| Turbo enabled for over clocking | JP1 | Open | |
S DRAM CONFIGURATION |
|
S ize |
C ard Version |
16MB |
( 2) 2M x 32 |
| 32MB | (4) 4M x 16 |
