Card Type

Video card

Video Chip Set

S3

Maximum Video Memory

1MB DRAM

Video Types Supported

VGA, XVGA

Highest Resolution Supported

1024 x 768

Data Bus

32-bit PCI

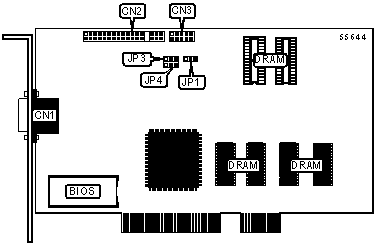

CONNECTIONS

Function

Label

Function

Label

15-pin analog video port

CN1

MPEG bi-directional interface

CN3

Feature connector (VGA)

CN2

USER CONFIGURABLE SETTINGS

Function

Label

Position

IRQ2 enabled

JP1

Pins 1 & 2 Closed

IRQ2 diabled

JP1

Pins 2 & 3 Closed

»

Factory configured - do not alter

JP3

Unidentified

»

Factory configured - do not alter

JP4

Unidentified

VIDEO MEMORY CONFIGURATION (DRAM/VRAM)

Note: The video memory configuration is unidentified.
