Card Type

Video card

Video Chip Set

Unidentified

Maximum Video Memory

64MB VRAM

Video Types Supported

VGA

Highest Resolution Supported

1824 x 1368

Data Bus

32-bit PCI

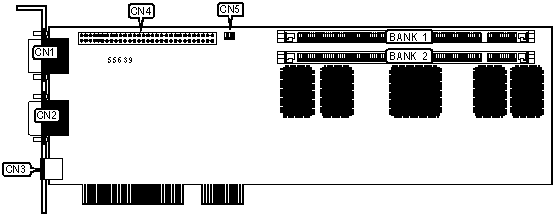

CONNECTIONS

Function

Label

Function

Label

15-pin analog video in port

CN1

Data bus connector

CN4

15-pin analog video out port

CN2

Clock Sync connector

CN5

Stereo Sync output port

CN3

DIMM CONFIGURATION

Size

Bank 1

Bank 2

4MB

(1) 256KB x 64

(1) 256KB x 64

16MB

(1) 1M x 64

(1) 1M x 64

32MB

(1) 2M x 64

(1) 2M x 64

64MB

(1) 4M x 64

(1) 4M x 64
