DENSITRON CORPORATION
PCIX690RP, PCIX690VP
| Card Type | Video card |
| Video Chip Set | Unidentified |
| Maximum Video Memory | 2MB SDRAM |
| Video Types Supported | VGA, XVGA, SuperVGA |
| Highest Resolution Supported | 1280 x 1024 |
| Data Bus | 32-bit PCI |

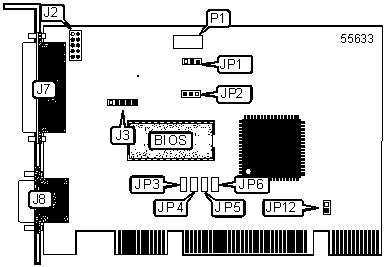

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| RS232 connector | J2 |
Flat panel connector | J7 |
| Keyboard connector | J3 |
15-pin analog video port | J8 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | Factory configured - do not alter | JP3 |
Unidentified |
| » | Factory configured - do not alter | JP4 |
Unidentified |
| » | Factory configured - do not alter | JP5 |
Unidentified |
| » | Factory configured - do not alter | JP6 |
Unidentified |
| » | Factory configured - do not alter | JP12 |
Closed |
PANEL TYPE SELECTION |
||
Setting |
JP1 |
JP2 |
| TFT | Pins 1 & 2 Closed |
Pins 1 & 2 Closed |
| STN | Pins 2 & 3 Closed |
Pins 2 & 3 Closed |
PANELLINK LEVEL SELECTION |
| Note: PanelLink level is selected on P1. No other information is available. |
MISCELLANEOUS TECHNICAL NOTES |
Model PCIX690VP is VESA P&D compliant. |
