Card Type

Video card

Video Chip Set

Cirrus Logic

Maximum Video Memory

4MB SGRAM

Video Types Supported

VGA

Highest Resolution Supported

1600 x 1200

Data Bus

32-bit PCI

CONNECTIONS

Function

Label

  44 pin AV connector

CN1

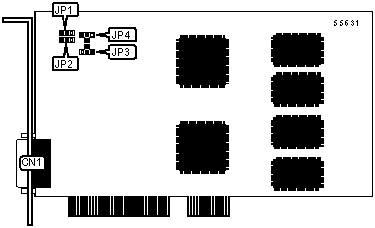

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Factory configured - do not alter

  JP1

Pins 1 & 2 Closed

»

Factory configured - do not alter

  JP2

Pins 1 & 2 Closed

CVBS 1 INPUT/OUTPUT CONNECTORS

Function

Label

Position

Routed video output

JP3

Pins 1 & 2 Closed

Composite video input

JP3

Pins 2 & 3 Closed

Composite TV output

JP3

Pins 2 & 4 Closed

CVBS 2 INPUT/OUTPUT CONNECTORS

Function

Label

Position

Routed video output

JP4

Pins 1 & 2 Closed

Composite video input

JP4

Pins 2 & 3 Closed

Composite TV output

JP4

Pins 2 & 4 Closed
