ASUS COMPUTER INTERNATIONAL
AGP-V3800 DELUXE
| Card Type | Video capture board |
| Video Chip Set | NVIDIA |
| Maximum Video Memory | 32MB SGRAM |
| Video Types Supported | VGA |
| Highest Resolution Supported | 2048 x 1536 |
| Data Bus | AGP |

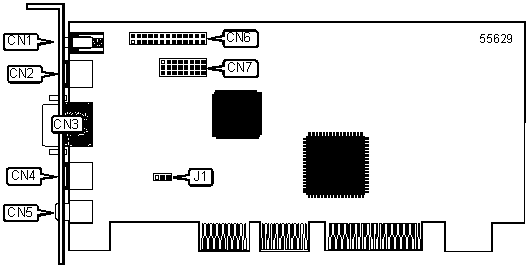

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| VR glasses output | CN1 |
RCA composite output | CN5 |
| OCD/camcorder/tuner input | CN2 |
ViP feature connector | CN6 |
| 15 pin analog video port | CN3 |
ViP feature connector | CN7 |
| S-Video output | CN4 |
||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| NTSC TV format | J1 |
Pins 2 & 3 Closed |
|
| PAL TV format | J1 |
Pins 1 & 2 Closed |
|
