MIRO COMPUTER PRODUCTS, INC.
MIROCRYSTAL 22SD TWIN
| Card Type | Video card |
| Video Chip Set | S3 |
| Maximum Video Memory | 2MB EDORAM |
| Video Types Supported | VGA |
| Highest Resolution Supported | 1408 x 1024 |
| Data Bus | 32-bit PCI |

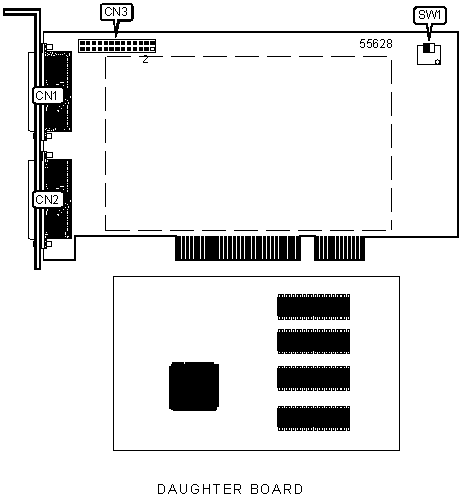

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| 15-pin video port | CN1 |
Feature connector | CN3 |
| 15-pin video port | CN2 |
||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | Factory configured - do not alter | SW1/1 | Off |
| » | Computer boots on daughter board | SW1/2 | Off |
| Computer boots on primary board | SW1/2 | On |
|
