PVGA-20
| Card Type | Video card |
| Video Chip Set | ALG2032 |
| Maximum Video Memory | 2MB DRAM |
| Video Types Supported | VGA |
| Highest Resolution Supported | 1280 x 1024 |
| Data Bus | 32-bit PCI |

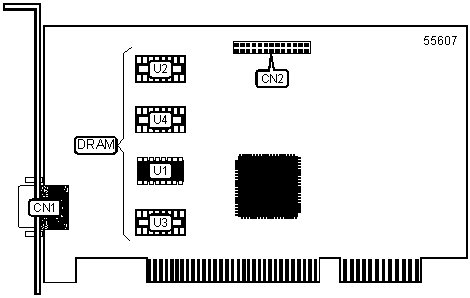

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| 15-pin analog video port | CN1 |
Feature connector | CN2 |
DRAM CONFIGURATION |
||||
Size |
U1 |
U2 |
U3 |
U4 |
512KB |
256Kx16 |
None |
None |
None |
1 MB |
256Kx16 |
256Kx16 |
None |
None |
2 MB |
256Kx16 |
256Kx16 |
256Kx16 |
256Kx16 |
