OCEAN INFORMATION SYSTEMS, INC.

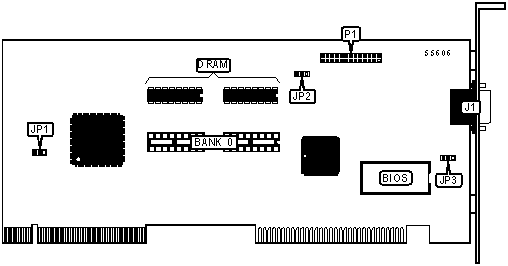

VL-VGA-1000
|
Card Type |
Video card |
|
Video Chip Set |
Unidentified |
|
Maximum Video Memory |
2MB DRAM |
|
Video Types Supported |
Monochrome, VGA |
|
Highest Resolution Supported |
1280 x 1024 |
|
Data Bus |
32 bit VL |
|
CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
15-pin analog video port |
J1 |
Feature connector |
P1 |
|
IRQ INTERRUPT CONTROL |
||
|
Function |
JP1 |
|
| » |
Disable IRQ9 |
Pins 1 & 2 Closed |
|
Enable IRQ9 |
Pins 2 & 3 Closed |
|
|
VL - BUS SPEED CONTROL |
||
|
Function |
JP2 |
|
|
Normal |
Pins 1 & 2 Closed |
|
| » |
Turbo |
Pins 2 & 3 Closed |
|
MONITOR DETECTION |
|
|
Function |
JP3 |
|
Automatic |
Pins 1 & 2 Closed |
|
Monochrome |
Pins 2 & 3 Closed |
|
DRAM CONFIGURATION |
|
|
Size |
Bank 0 |
|
1MB |
None |
|
2MB |
(2) 256Kx16 |
