OCEAN INFORMATION SYSTEMS, INC.
AVGA-21
|
Card Type |
Video card |
|
Video Chip Set |
Unidentified |
|
Maximum Video Memory |
Unidentified |
|
Video Types Supported |
Monochrome, VGA |
|
Highest Resolution Supported |
1024x768 |
|
Data Bus |
16-bit ISA |
|

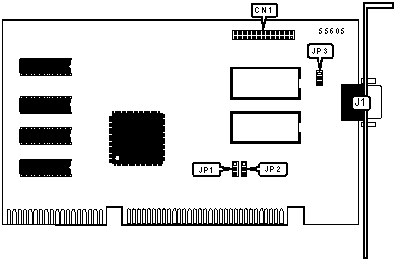

CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
Feature connector |
CN1 |
15-pin analog video port |
J1 |
|
WAIT STATE SELECTION |
||
|
Function |
JP1 |
|
| » |
Enable zero wait state |
Pins 1 & 2 Closed |
|
Disable zero wait state |
Pins 2 & 3 Closed |
|
|
IRQ INTERRUPT CONTROL |
||
|
Function |
JP2 |
|
| » |
Enable IRQ9 |
Pins 1 & 2 Closed |
|
Disable IRQ9 |
Pins 2 & 3 Closed |
|
|
MONITOR DETECTION |
||
|
Function |
JP3 |
|
| » |
Automatic |
Pins 1 & 2 Closed |
|
Monochrome |
Pins 2 & 3 Closed |
|
