OCEAN INFORMATION SYSTEMS, INC.
WA-911
|
Card Type |
Video card |
|
Video Chip Set |
S3 |
|
Maximum Video Memory |
1MB VRAM |
|
Video Types Supported |
Monochrome, CGA, EGA, VGA, XVGA |
|
Highest Resolution Supported |
1280 x 1024 |
|
Data Bus |
16-bit ISA |
|

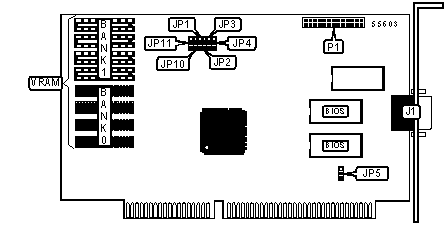

CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
15-pin analog video port |
J1 |
Feature connector |
P1 |
|
VRAM SIZE SETTING |
||
|
Function |
JP1 |
|
| » |
512K VRAM |
Pins 2 & 3 Closed |
|
1024K VRAM |
Pins 1 & 2 Closed |
|
|
SCANNING RATE CONTROL |
|||
|
Resolution |
JP2 |
JP3 |
JP4 |
|
640x480, 60Hz, noninterlaced |
Pins 1 & 2 Closed |
Pins 1 & 2 Closed |
Pins 1 & 2 Closed |
|
640x480, 70Hz, noninterlaced |
Pins 2 & 3 Closed |
Pins 1 & 2 Closed |
Pins 1 & 2 Closed |
|
800x600, 56Hz, noninterlaced |
Pins 1 & 2 Closed |
Pins 1 & 2 Closed |
Pins 2 & 3 Closed |
|
800x600, 60Hz, noninterlaced |
Pins 1 & 2 Closed |
Pins 2 & 3 Closed |
Pins 1 & 2 Closed |
|
800x600, 70Hz, noninterlaced |
Pins 2 & 3 Closed |
Pins 2 & 3 Closed |
Pins 1 & 2 Closed |
|
1024x768, 43Hz, interlaced |
Pins 2 & 3 Closed |
Pins 1 & 2 Closed |
Pins 2 & 3 Closed |
|
1024x768, 60Hz, noninterlaced |
Pins 1 & 2 Closed |
Pins 2 & 3 Closed |
Pins 2 & 3 Closed |
|
1024x768, 70Hz, noninterlaced |
Pins 2 & 3 Closed |
Pins 2 & 3 Closed |
Pins 2 & 3 Closed |
|
IRQ9 INTERRUPT CONTROL |
|
|
Function |
JP5 |
|
Enable IRQ9 |
Pins 1 & 2 Closed |
|
Disable IRQ9 |
Pins 2 & 3 Closed |
|
8/16 BIT VIDEO BIOS |
|
|
Function |
JP10 |
|
8 bit BIOS |
Pins 1 & 2 Closed |
|
16 bit BIOS |
Pins 2 & 3 Closed |
|
Note: to avoid conflict with other controllers using address C0000H to DFFFFH, use 8-bit BIOS setting |
|
