ELITEGROUP COMPUTER SYSTEMS, LTD.
3D VISION-6326 (EDO)
|
Card Type |
Video card |
|
Video Chip Set |
SIS |
|
Maximum Video Memory |
4MB EDO DRAM |
|
Video Types Supported |
VGA, SVGA |
|
Highest Resolution Supported |
1600 x 1200 |
|
Data Bus |
AGP |
|

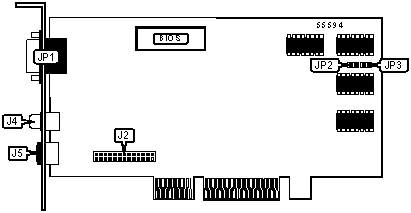

CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
Header connector |
J2 |
S-video out |
J5 |
|
RCA output |
J4 |
15-pin analog video port |
JP1 |
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Position |
|
| » |
NTSC format for TV function |
JP2 |
Open |
|
PAL format for TV function |
JP2 |
Closed |
|
|
Disable INTA |
JP3 |
Open |
|
| » |
Enable INTA |
JP3 |
Closed |
