DSV3325DX (PCI)
| Card Type | Video card |
| Video Chip Set | S3 |
| Maximum Video Memory | 4MB |
| Video Types Supported | Monochrome, CGA, EGA, VGA |
| Highest Resolution Supported | 1600 x 1200 |
| Data Bus | PCI/64-bit |

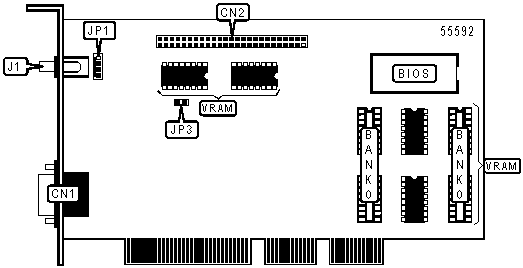

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| 15-pin analog video port | CN1 |
MPEG audio out - internal | JP1 |
| Feature connector | CN2 |
INT A jumper (S/W programming) | JP3 |
| MPEG audio out - external | J1 |
||
USER CONFIGURABLE SETTINGS |
||
Function |
Label |
Position |
| » Factory configured - do not alter | JP3 |
Unidentified |
VIDEO MEMORY CONFIGURATION (DRAM) |
|
Size |
Bank 0 |
2MB |
None |
4MB |
(4) 256KB x 16 |
