DIGITAL VIEW COMPANY

AC-1024 V.3 (4163400-3X)

Card Type Video card
Video Chip Set Unidentified
Maximum Video Memory Unidentified
Video Types Supported VGA, SVGA, XGA
Highest Resolution Supported 1024 x 768
Data Bus None

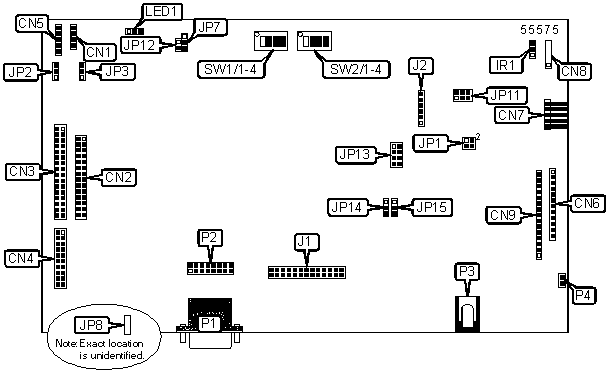

CONNECTIONS

Function

Label

Function

Label

Auxiliary power connector CN1 IR connector IR1
LCD panel connector A CN2 Video add-on connector J1
LCD panel connector B CN3 RS-232 linkage J2
8-bit LCD panel connector CN4 LED connector LED1
Backlight inverter connector CN5 VGA analog in P1
Function control connector CN6 Alternative VGA in P2
Audio board connector CN7 DC power connector P3
Reserved CN8 Alternative DC power connector P4
Alternative Function control connector CN9


USER CONFIGURABLE SETTINGS

Function

Label

Position

» Factory configured - do not alter JP1 Pins 1 & 2 closed
» Factory configured - do not alter JP1 Pins 3 & 4 closed
  Backlight inverter polarity control - signal "high" = CCFT on JP3 Pins 1 & 2 closed
  Backlight inverter polarity control - signal "low" = CCFT on JP3 Pins 2 & 3 closed
  +3.3V panel power voltage selected JP7 Pins 1 & 2 closed
  +5V panel power voltage selected JP7 Pins 2 & 3 closed
» Factory configured - do not alter JP8 Unidentified
  +12V RS-232 signal level selected JP11 Pins 1 & 3, 2 & 4 closed
  +5V RS-232 signal level selected JP11 Pins 3 & 5, 4 & 6 closed
  +12V safe panel power enabled JP12 Pins 1 & 2 closed
  +12V safe panel power disabled JP12 Open
  Vertical filter enabled SW1/1 On
  Vertical filter disabled SW1/1 Off
  Display enabled during Sync SW2/2 On
  Display disabled during Sync SW2/2 Off
  Volume enabled SW2/4 On
  Volume disabled SW2/4 Off


PANEL SELECTION

Setting

SW1/2

SW1/3

SW1/4

XGA (dual pixels)

On

Off

On
XGA (single pixels) On Off Off
SVGA Off On On
VGA Off Off On


PANEL CLOCK SELECTION

Setting

JP13

JP14

JP15

XGA panel

Pins 3 & 4 closed

Pins 1 & 2 closed

Pins 1 & 2 closed
SVGA panel Pins 3 & 4 closed Pins 1 & 2 closed Pins 2 & 3 closed
VGA panel Pins 3 & 4 closed Pins 1 & 2 closed Open


BACKLIGHT INVERTER SIGNAL LEVEL SELECTION

Setting

JP2

On/off control signal "High" = +12V

Pins 1 & 2 closed
On/off control signal "High" = +5V Pins 2 & 3 closed
On/off control signal "High" = open collector Open


MISCELLANEOUS TECHNICAL NOTES

Clock phase selection is controlled by SW2/1.  Switch SW2/1 on and off to adjust image stability.
Vertical stability is controlled by SW2/3.  Switch SW2/3 on and off to adjust image vertical stability.
