DIGITAL VIEW COMPANY

AV-0800 (4163200-0X)

Card Type Video card
Video Chip Set Unidentified
Maximum Video Memory Unidentified
Video Types Supported VGA, SVGA
Highest Resolution Supported 800 x 600
Data Bus None

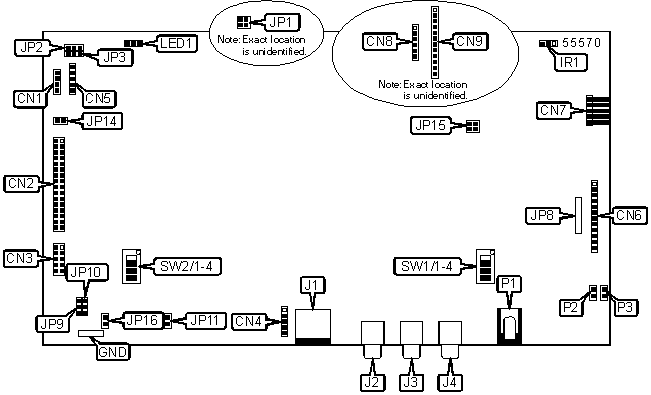

CONNECTIONS

Function

Label

Function

Label

Auxiliary power connector CN1 IR connector IR1
LCD panel connector A CN2 S-video in J1
LCD panel connector B CN3 Composite in J2
Alternative video in CN4 Audio in - left channel J3
Backlight inverter connector CN5 Audio in - right channel J4
OSD switch CN6 LED connector LED1
Audio add-on connector CN7 DC power connector P1
Serial interace CN8 Alternative power connector 1 P2
OSD switch CN9 Alternative power connector 2 P3
Ground connector GND


USER CONFIGURABLE SETTINGS

Function

Label

Position

» Factory configured - do not alter JP1 Pins 1 & 2 closed
» Factory configured - do not alter JP1 Pins 3 & 4 closed
  Backlight inverter control signal 'high' = on JP3 Pins 1 & 2 closed
  Backlight inverter control signal 'low' = on JP3 Pins 2 & 3 closed
» Factory configured - do not alter JP8 Unidentified
  Image orientation right/left - 4.7kOhm resistor (high) JP9 Pins 1 & 2 closed
  Image orientation right/left - ground (low) JP9 Pins 2 & 3 closed
  Image orientation up/down - 1kOhm resistor (high) JP10 Pins 2 & 3 closed
  Image orientation up/down - ground (low) JP10 Pins 1 & 2 closed
  Signal in termination resistor enabled JP11 Closed
  Signal in termination resistor disabled JP11 Open
  Termination resistor on dot clock output enabled JP14 Closed
  Termination resistor on dot clock output disabled JP14 Open
» Factory configured - do not alter JP15 Pins 1 & 3 closed
» Factory configured - do not alter JP15 Pins 2 & 4 closed
  3.3V panel power supply selected JP16 Pins 1 & 2 closed
  5V panel power supply selected JP16 Pins 2 & 3 closed
» Factory configured - do not alter SW2/2 Unidentified
» Factory configured - do not alter SW2/3 Unidentified
  Audio board installed SW2/4 On
  Audio board not installed SW2/4 Off


BACKLIGHT INVERTER SIGNAL LEVEL SELECTION

Setting

 JP2

High/+12V

 Pins 1 & 2 closed
High/+5V Pins 2 & 3 closed
High/Open collector Open


LCD PANEL SELECTION

Setting

SW1/1

SW1/2

 SW1/3 SW1/4 SW2/1

VGA - generic 24-bits

 Off On On Off Off
VGA - Toshiba 24-bits Off On On Off On
VGA - generic 18-bits On Off On Off Off
VGA - Toshiba 18-bits On Off On Off On
SVGA - generic 18-bits Off Off On On Off
SVGA - Hosiden 18-bits Off Off On On On
