PROCOMP INFORMATICS, LTD.
M410 DVD DECODER CARD
| Card Type | DVD/MPEG decoder |
| Chip Set | Unidentified |
| I/O Options | VGA in and out interfaces, S-Video port, S/PDIF port, Audio out port, Composite Video out port |
| Data Bus | 32-bit PCI |

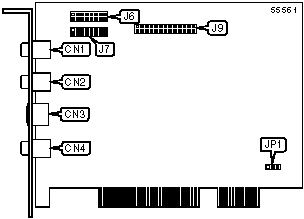

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Composite Video connector | CN1 |
VGA in interface | J6 |
| S-Video connector | CN2 |
VGA out interface | J7 |
| S/PDIF connector | CN3 |
VMI/VIP/LPB/AMC Video bus | J9 |
| Audio out | CN4 |
|
|
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| Power supplied by mainboard | JP1 | Pins 1 & 2 closed | |
| » | Power supplied by card | JP1 | Pins 2 & 3 closed |
