Card Type

Video card

Video Chip Set

Unidentified

Maximum Video Memory

256KB

Video Types Supported

Monochrome, CGA, EGA, VGA

Highest Resolution Supported

800 x 600

Data Bus

16-bit ISA

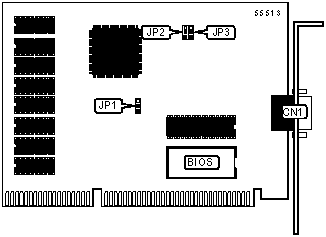

CONNECTIONS

Function

Label

 15-pin analog video port

CN1

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

16-Bit interface enabled

JP1

Unidentified

8-Bit interface enabled

JP1

Pins 1 & 2 Closed

»

NMI interrupt disabled

JP2

Unidentified

NMI interrupt enabled

JP2

Pins 1 & 2 Closed

»

IRQ9 disabled

JP3

Unidentified

IRQ9 enabled

JP3

Pins 1 & 2 Closed
