MIRO COMPUTER PRODUCTS, INC.
MIROTIGER 8
|
Card Type |
Video card |
|
Video Chip Set |
Unidentified |
|
Maximum Video Memory |
8MB (4MB VRAM, 4MB DRAM) |
|
Video Types Supported |
VGA |
|
Highest Resolution Supported |
1280 x 1024 |
|
Data Bus |
16-bit ISA |
|

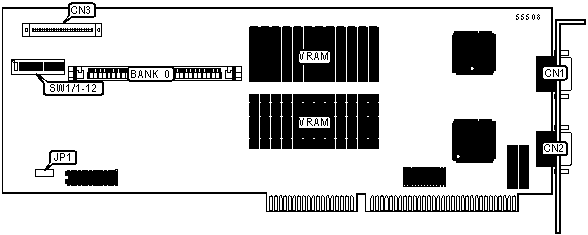

CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
15-pin analog video port (High res) |
CN1 |
Cable connector to accelerator board |
CN3 |
|
15-pin analog video port (VGA) |
CN2 |
||
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Setting |
|
| » |
Factory configured - do not alter |
JP1 |
Unidentified |
| » |
Factory configured - do not alter |
SW1/9 |
Off |
| » |
Factory configured - do not alter |
SW1/10 |
Off |
| » |
Single screen configuration |
SW1/11 |
Off |
|
Dual screen configuration |
SW1/11 |
On |
|
| » |
VGA enabled |
SW1/12 |
On |
|
VGA disabled |
SW1/12 |
Off |
|
|
MEMORY CONFIGURATION |
|||
|
Size |
SIMM |
SW1/8 |
|
|
4MB |
Uninstalled |
On |
|
| » |
8MB |
Installed |
Off |
|
Note: 4MB DRAM SIMM module included. |
|||
|
BASE I/O ADDRESS SELECTION |
||||||||
|
Setting |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
|
|
000h |
On |
On |
On |
On |
On |
On |
On |
|
|
008h |
On |
On |
On |
On |
On |
On |
Off |
|
|
010h |
On |
On |
On |
On |
On |
Off |
On |
|
|
018h |
On |
On |
On |
On |
On |
Off |
Off |
|
|
020h |
On |
On |
On |
On |
Off |
On |
On |
|
| » |
360h |
Off |
Off |
On |
Off |
Off |
On |
On |
|
3D8h |
Off |
Off |
Off |
Off |
On |
Off |
Off |
|
|
3E0h |
Off |
Off |
Off |
Off |
Off |
On |
On |
|
|
3E8h |
Off |
Off |
Off |
Off |
Off |
On |
Off |
|
|
3F0h |
Off |
Off |
Off |
Off |
Off |
Off |
On |
|
|
3F8h |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
|
|
Note: A total of 128 base address settings are available. The switches are a binary representation of the decimal memory addresses. SW1/1 is the Most Significant Bit and switch SW1/7 is the Least Significant Bit. The switches have the following decimal values: SW1/7=8, SW1/6=16, SW1/5=32, SW1/4=64, SW1/3=128, SW1/2=256, SW1/1=512. Turn off the switches and add the values of the switches to obtain the correct memory address. (Off=1, On=0) |
||||||||
