MIRO COMPUTER PRODUCTS, INC.
MIROMAGIC PLUS
|
Card Type |
Video card |
|
Video Chip Set |
Unidentified |
|
Maximum Video Memory |
2MB VRAM |
|
Video Types Supported |
VGA |
|
Highest Resolution Supported |
1024 x 768 |
|
Data Bus |
16-bit ISA |
|

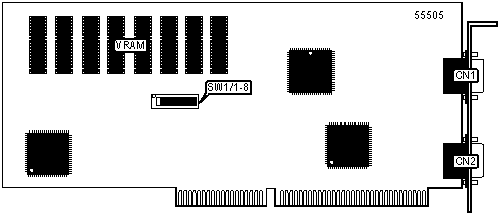

CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
15-pin analog video port |
CN1 |
VGA port |
CN2 |
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Setting |
|
| » |
Onboard VGA enabled |
SW1/1 |
On |
|
Onboard VGA disabled |
SW1/1 |
Off |
|
| » |
Factory configured - do not alter |
SW1/2 |
Off |
| » |
Factory configured - do not alter |
SW1/3 |
Off |
| » |
Factory configured - do not alter |
SW1/4 |
On |
| » |
Factory configured - do not alter |
SW1/5 |
Off |
| » |
Factory configured - do not alter |
SW1/6 |
On |
|
BOARD NUMBER SELECTION |
|||
|
Setting |
SW1/7 |
SW1/8 |
|
| » |
One video card installed on system |
Off |
Off |
|
Two video cards installed on system |
On |
Off |
|
|
Note: Second board must have SW1/7 switched off and SW1/8 switched on. |
|||
