AAEON TECHNOLOGY, INC.
PCM-3521
|
Card Type |
Video card |
|
Chip Set |
Chips & Technologies |
|
Maximum Onboard Memory |
1MB DRAM |
|
I/O Options |
44-pin LCD panel connector, 5-pin power connector, 9-pin digital video port, 64-pin PC/104 connector, 40-pin PC/104 connector |
|
Video Types Supported |
VGA |
|
Highest Resolution Supported |
1280 x 1024 |
|
Data Bus |
PC/104 |
|

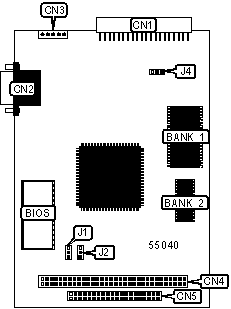

CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
LCD panel connector |
CN1 |
PC/104 connector |
CN4 |
|
9-pin analog video port |
CN2 |
PC/104 connector |
CN5 |
|
Power connector |
CN3 |
||
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Position |
|
| » |
Factory configured - do not alter |
J1 |
Pins 1 & 2 closed |
| » |
Factory configured - do not alter |
J2 |
Pins 1 & 2 closed |
| » |
Factory configured - do not alter |
J4 |
Pins 1 & 2 closed |
