JATON CORPORATION
TV2PC
| Card Type | Tuner/Video capture card |
| Video Chip Set | Unidentified |
| Maximum Video Memory | Unidentified |
| Data Bus | Intel 32-bit PCI |

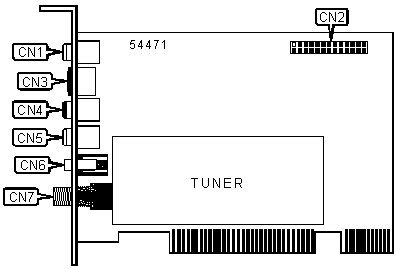

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| RCA video in | CN1 | Audio in (left) | CN5 |
| VESA feature connector | CN2 | Audio out | CN6 |
| S-video in | CN3 | TV antenna/cable TV in | CN7 |
| Audio in (right) | CN4 | ||
| Note: The VESA feature connector is used to connect TV tuner/video capture card to video card via 26-pin ribbon cable. | |||
