EMAC, INC.
PCM-3521
| Card Type | Video card |
| Video Chip Set | Chips and Technology |
| Maximum Video Memory | 1MB DRAM |
| Video Types Supported | Monochrome, VGA, SVGA |
| Highest Resolution Supported | 1280 x 1024 (flat panel), 1024 x 768 (CRT) |
| Data Bus | PC/104 |

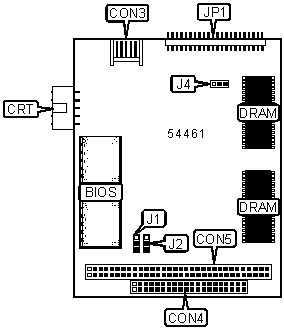

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Power connector | CON3 | CRT connector | CRT |
| 16-bit PC/104 connector | CON4 | LCD connector | JP1 |
| 8-bit PC/104 connector | CON5 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | Factory configured - do not alter | J1 | Pins 1 & 2 closed |
| » | Factory configured - do not alter | J2 | Pins 1 & 2 closed |
| » | Factory configured - do not alter | J4 | Pins 1 & 2 closed |
