PATTON ELECTRONICS COMPANY
1094A
| Card Type | Modem (synchronous) |
| Chip Set | Unidentified |
| I/O Options | RJ-45 Ethernet connection, serial port, parallel port |
| Maximum Modem Rate | 1152Kbps |
| Data Modulation Protocol | RS-230 ITU-T V.24, RS-232/530, ITU/T V.35 and ITU/U X.21 (available via interface modules) |
| Data Bus | External |

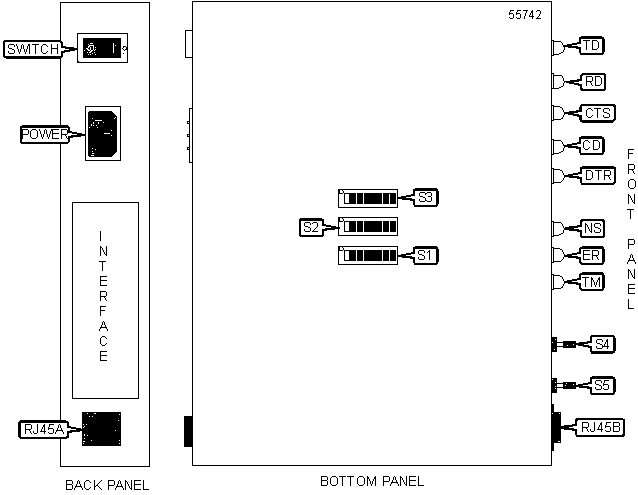

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Module interface | Interface |
Ethernet via RJ-45 connector 2 | RJ45 B |
| DC power | POWER |
Power switch | SWITCH |
| Ethernet via RJ-45 connector 1 | RJ45 A |
|
|
USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| » | Factory configured - do not alter | S1/1 | On |
| » | Factory configured - do not alter | S1/2 | On |
| » | Factory configured - do not alter | S1/3 | On |
| » | Factory configured - do not alter | S1/4 | On |
| » | Factory configured - do not alter | S1/5 | On |
| » | Factory configured - do not alter | S1/6 | On |
| » | Factory configured - do not alter | S1/7 | On |
| » | Factory configured - do not alter | S1/8 | On |
| » | Factory configured - do not alter | S2/1 | Off |
| » | Factory configured - do not alter | S2/2 | Off |
| » | Factory configured - do not alter | S2/3 | Off |
| » | Factory configured - do not alter | S2/4 | Off |
| » | Factory configured - do not alter | S2/5 | Off |
| » | DTE Loopback Request response disabled | S2/8 | Off |
| DTE Loopback Request response enabled | S2/8 | On | |
| Reset to factory default select | S3/7 | On | |
| Normal operation select | S3/7 | Off | |
| » | Transmit Data sampled on the falling edge of the Transmit Clock | S3/8 | On |
| Transmit Data sampled on the rising edge of the Transmit Clock | S3/8 | Off | |
C LOCK MODE |
||
C lock mode |
S2/6 | S2/7 |
I nternal |
O n |
On |
| External | Off | On |
| Received recover | On | Off |
| Reserved | Off | Off |
D TE SPEED DETECTION |
|||||||
S peed |
S 3/1 |
S3/2 | S3/3 | S3/4 | S3/5 | S3/6 | |
| » | 64Kbps |
Off |
Off |
On | On | On | On |
| 128Kbps | On | On | Off | On | On | On | |
| 192Kbps | Off |
On | Off | On | On | On | |
| 256Kbps | On | Off | Off | On | On | On | |
| 320Kbps | Off |
Off | Off | On | On | On | |
| 384Kbps | On | On | On | Off | On | On | |
| 448Kbps | Off |
On | On | Off | On | On | |
| 512Kbps | On | Off | On | Off | On | On | |
| 576Kbps | Off |
Off | On | Off | On | On | |
| 640Kbps | On | On | Off | Off | On | On | |
| 704Kbps | Off |
On | Off | Off | On | On | |
| 768Kbps | On | Off | Off | Off | On | On | |
| 832Kbps | Off |
Off | Off | Off | On | On | |
| 896Kbps | On | On | On | On | Off | On | |
| 960Kbps | Off |
On | On | On | Off | On | |
| 1024Kbps | On | Off | On | On | Off | On | |
| 1088Kbps | Off |
Off | On | On | Off | On | |
| 1152Kbps | On | On | Off | On | Off | On | |
T EST MODE |
||
T est |
S 4 |
S5 |
N ormal operation |
Center | C enter |
| Local Loop | Up | Center |
| Local Loop with 511 | Up | Down |
| Local Loop with 511E | Up | Up |
| Remote Digital Loop | Down | Center |
| Remote Digital Loop with 511 | Down | Down |
| Remote Digital Loop with 511E | Down | Up |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
CD |
Green | On |
Carrier signal detected |
CD |
Y ellow |
O n |
Carrier signal not detected |
C TS |
Green | On |
C lear to send signal is active |
| CTS | Green | Off |
Clear to send signal is not active |
| DTR | Green | On |
DTR signal is high |
| DTR | Green | Off |
DTR signal is low |
E R |
Red |
Blinking (Fast) |
D TE rate is set to unsupported settings |
| ER | Red |
Blinking | 5 11/511E test timed out |
| ER | Red |
Blink (Once) | C RC error |
N S |
Red |
On |
Modem is not remotely connected |
| NS | Red |
Off |
Modem is remotely connected |
R D |
Green | On |
Modem is receiving data |
R D |
Yellow | O n |
Modem is not receiving data |
T D |
Green | On |
Modem is transmitting data |
T D |
Yellow | O n |
Modem is not transmitting data |
T M |
Yellow | On |
T est mode activated |
| TM | Y ellow |
Off |
Test mode deactivated |
M ISCELLANEOUS TECHNICAL NOTE |
| Note: Modules can be exchanged depending on the port and protocol needed. |
