CISCO SYSTEMS, INC.
CISCO 605D
| Card Type | Modem (Asymmetric Digital Subscriber Line) |
| Chip Set | Unidentified |
| I/O Options | RJ-11 (2) |
| Maximum Modem Rate | Up to 7Mbps |
| Data Modulation Protocol | PPP IP AAI5 and Raw Cell formats |
| Data Bus | 32-bit PCI |

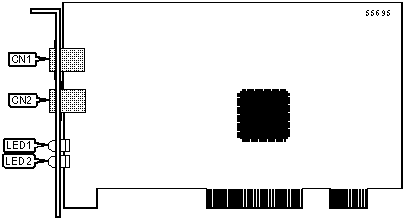

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Line out | CN1 |
DC power | CN2 |
| Line in | CN2 |
Volume | R1 |
| RS-232/422 | CN3 |
Power switch | SW1 |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
LED1 |
Unidentified |
On |
Connection established |
LED1 |
Unidentified |
Blinking |
Connection being established |
LED1 |
Unidentified |
Off |
No connection |
LED2 |
Unidentified |
On |
ADSL active |
LED2 |
Unidentified |
Off |
ADSL inactive |
